please also make sure to complete the graphs correctly.

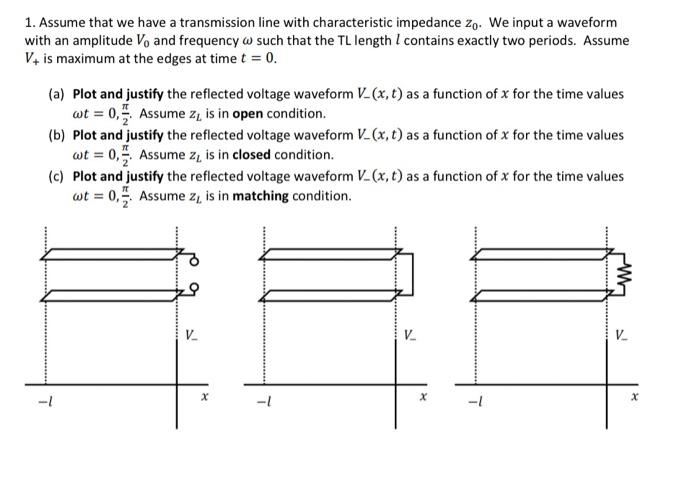

1. Assume that we have a transmission line with characteristic impedance Zo. We input a waveform with an amplitude Vand frequency w such that the TL length I contains exactly two periods. Assume Vtis maximum at the edges at time t = 0. (a) Plot and justify the reflected voltage waveform V-(x, t) as a function of x for the time values wt = 0, Assume 2, is in open condition. (b) Plot and justify the reflected voltage waveform V-(x,t) as a function of x for the time values wt = 0, Assume z is in closed condition. (c) Plot and justify the reflected voltage waveform V_(x, t) as a function of x for the time values wt = 0, Assume z, is in matching condition. V V. V X X X
