Please answer a,b,d only .

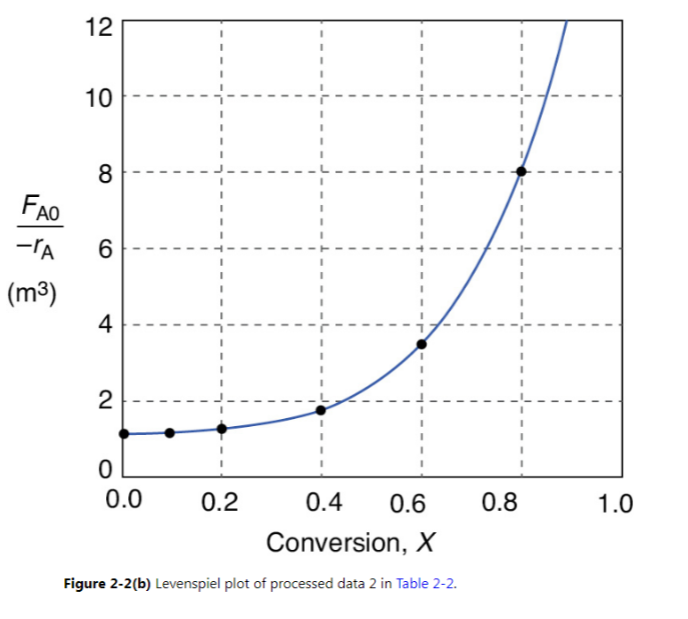

P2-3. You have two CSTRs and two PFRs, each with a volume of 1.0 m. Use Figure 2-2(b) on page 45 to calculate the conversion for each of the reactors in the following arrangements. a. Two CSTRs in series. (Ans: X2 = 0.435, X, = 0.66) b. Two PFRs in series. T. COTRS paralci wit merced Fire divided uciveti IC ECE d. Two PFRs in parallel with the feed divided equally between the two reactors. Lollowe wy a Csin. A CSTRONied by a PTR. (Ane: Y 0.455, XDR = 0.71) A DER followed by two STR. is unis a good arrangement or is there a weiter one? Se Dart this a C level problem. A CSTR cu a fi in paralici win the flow aqually Calculate thic ovcial conversion or FAQ _ FAO XCSTR, and FAP (1 - XPFR) ) FAO 2 2 2 CSTR turn a ay Wridad. F10 - FastR - FAPFR, with FacsTR = ? FAO X _' X 0.0 0.1 0.2 0.4 0.6 0.7 0.8 mol -TA 3 m .S 0.45 0.37 0.30 0.195 0.113 0.079 0.05 3 ms (1/-r) mol 2.22 2.70 3.33 5.13 8.85 12.7 20 (F20/=)(m3) 0.89 1.08 1.33 2.05 3.54 5.06 8.0 12 1 10 8 FAO -ra 6 (m3) 4 2 0.8 1.0 0 0.0 0.2 0.4 0.6 Conversion, X Figure 2-2(b) Levenspiel plot of processed data 2 in Table 2-2
