Question: Please answer a-e ChE 2113 Quiz 2 Problem 3 2020-2021.docx Consider the simple steam power plant as shown in the figure above. Since there are

Please answer a-e ChE 2113 Quiz 2 Problem 3 2020-2021.docx Consider

the simple steam power plant as shown in the figure above. Since

Please answer a-e

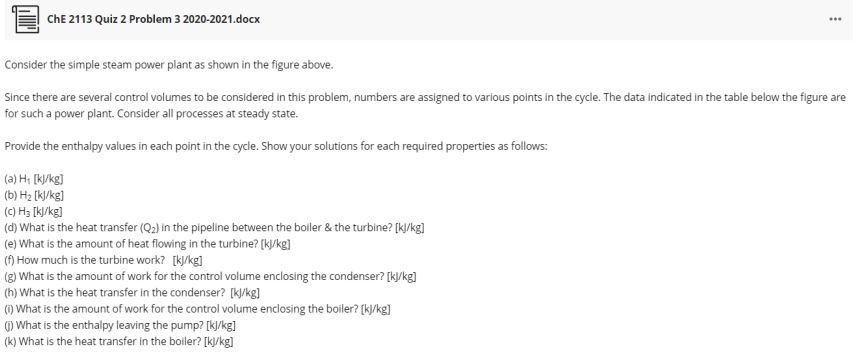

ChE 2113 Quiz 2 Problem 3 2020-2021.docx Consider the simple steam power plant as shown in the figure above. Since there are several control volumes to be considered in this problem, numbers are assigned to various points in the cycle. The data indicated in the table below the figure are for such a power plant. Consider all processes at steady state. Provide the enthalpy values in each point in the cycle. Show your solutions for each required properties as follows: (a) [ky/kg) (b) Hz (kJ/kg] (c) H3[k]/kg] (d) What is the heat transfer (Qz] In the pipeline between the boiler & the turbine? [ky/kg] (e) What is the amount of heat flowing in the turbine? [k/kg] (f) How much is the turbine work? [kJ/kg] (g) What is the amount of work for the control volume enclosing the condenser? [ky/kg] (h) What is the heat transfer in the condenser? [kJ/kg] What is the amount of work for the control volume enclosing the boiler? [k//kg] What is the enthalpy leaving the pump? [kJ/kg] (k) What is the heat transfer in the boller? [k/kg] Q WI - dc Pressure 2.0 MPa 1.9 MPa Temperature or Quality 300C 290C Location Leaving boiler Entering turbine Leaving turbine, entering condenser Leaving condenser, entering pump Pump work = 4 kJ/kg 15 kPa 90% H.- 188.5 kJ/kg

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
