Question: Please answer all parts. :) none Question 3 Based on the Time Chart | Project A, as shown in Table 1, assuming that the project

Please answer all parts. :)

Please answer all parts. :) none Question 3 Based

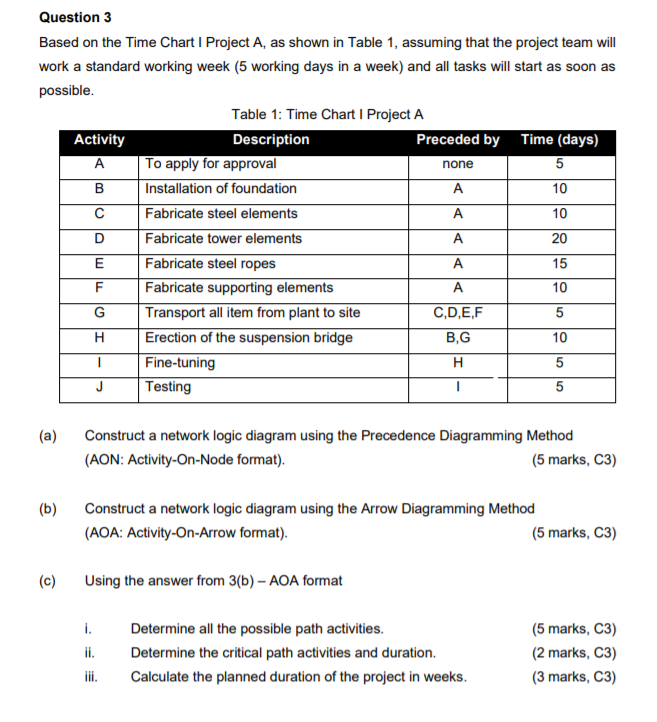

none Question 3 Based on the Time Chart | Project A, as shown in Table 1, assuming that the project team will work a standard working week (5 working days in a week) and all tasks will start as soon as possible. Table 1: Time Chart | Project A Activity Description Preceded by Time (days) . To apply for approval 5 B Installation of foundation A 10 Fabricate steel elements A 10 D Fabricate tower elements A 20 E Fabricate steel ropes A 15 F Fabricate supporting elements A 10 G Transport all item from plant to site C,D,E,F 5 H Erection of the suspension bridge BG 10 1 Fine-tuning H 5 J Testing 5 (a) Construct a network logic diagram using the Precedence Diagramming Method (AON: Activity-On-Node format). (5 marks, C3) (b) Construct a network logic diagram using the Arrow Diagramming Method (AOA: Activity-On-Arrow format). (5 marks, C3) (c) Using the answer from 3(b) - AOA format i. ii. iii. Determine all the possible path activities. Determine the critical path activities and duration Calculate the planned duration of the project in weeks. (5 marks, C3) (2 marks, C3) (3 marks, C3)
