Question: Please answer as clear and descriptive as possible. 4 . Shown above is a simple span Howe Truss. For each case, solve for the RESULTANT

Please answer as clear and descriptive as possible.

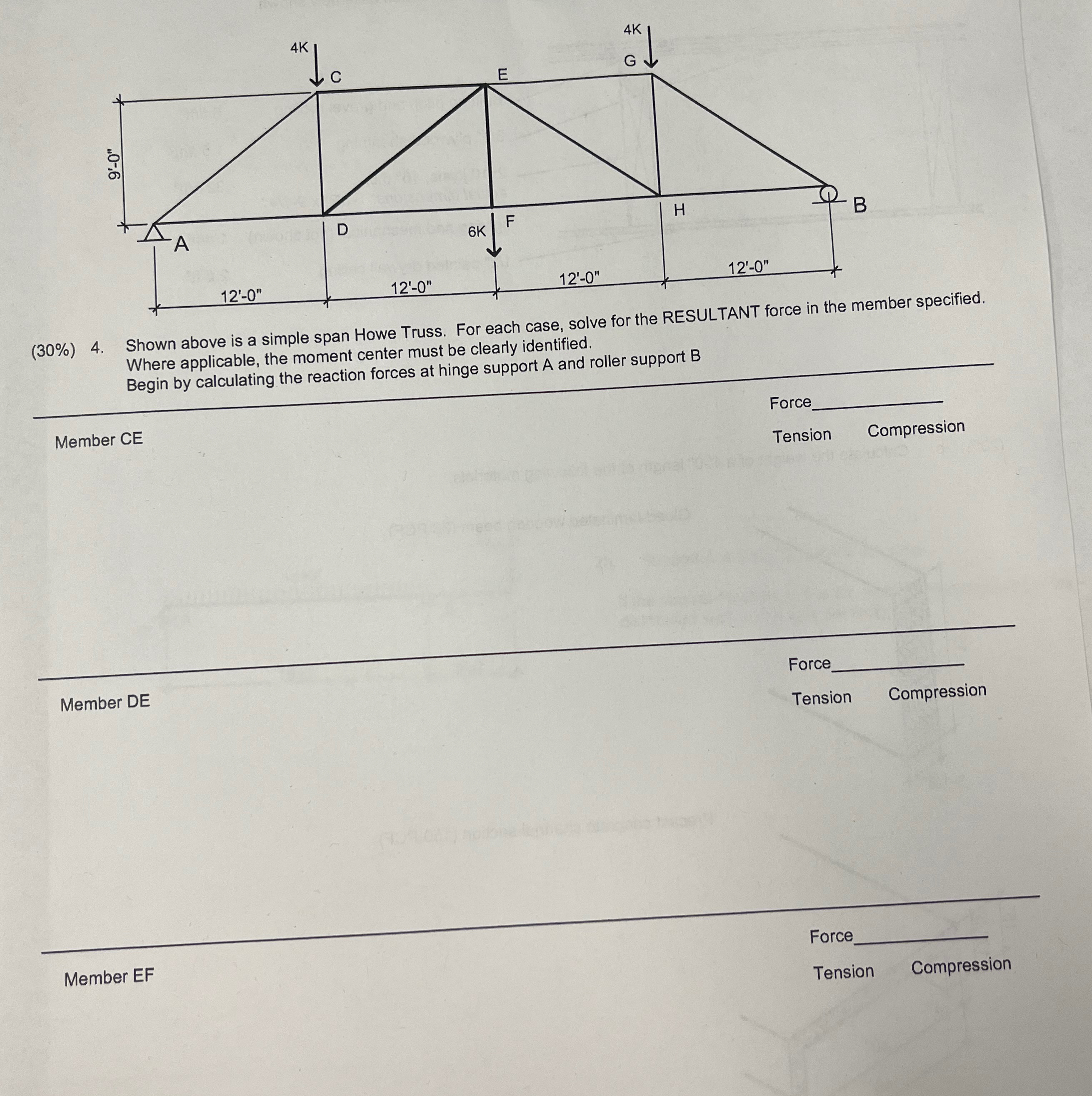

4. Shown above is a simple span Howe Truss. For each case, solve for the RESULTANT force in the member specified. must be clearly identified.
Where applicable, the moment center must be clearly identified. Begin by calculating the reaction forces at hinge support A and roller support B.
Please answer as clear and descriptive as

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
