PLEASE ANSWER AS SOON AS POSSIBLE AND CORRECTLY , I WILL GIVE THREE UPVOTES FOR YOUR EFFORT

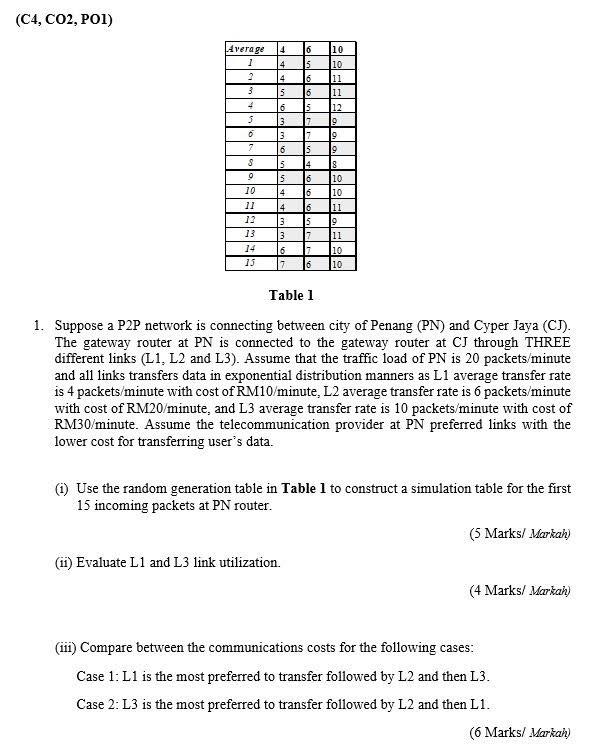

(C4, CO2, PO1) 4 6 4 4 5 10 10 11 11 12 Average 1 2 3 4 5 0 7 S 9 10 11 12 13 14 3 3 6 5 5 4 4 3 3 6 17 15 6 6 5 17 7 15 14 6 16 6 5 7 7 6 19 19 8 10 10 11 19 11 10 10 Table 1 1. Suppose a P2P network is connecting between city of Penang (PN) and Cyper Jaya (CT). The gateway router at PN is connected to the gateway router at CJ through THREE different links (L1, L2 and L3). Assume that the traffic load of PN is 20 packets/minute and all links transfers data in exponential distribution manners as L1 average transfer rate is 4 packets/minute with cost of RM10/minute, L2 average transfer rate is 6 packets/minute with cost of RM20/minute, and L3 average transfer rate is 10 packets/minute with cost of RM30 minute. Assume the telecommunication provider at PN preferred links with the lower cost for transferring user's data. (1) Use the random generation table in Table 1 to construct a simulation table for the first 15 incoming packets at PN router. (5 Marks/ Markah) (11) Evaluate L1 and L3 link utilization. (4 Marks/ Markah) (111) Compare between the communications costs for the following cases: Case 1: L1 is the most preferred to transfer followed by L2 and then L3. Case 2: L3 is the most preferred to transfer followed by L2 and then L1. ( Marks/ Markah) (C4, CO2, PO1) 4 6 4 4 5 10 10 11 11 12 Average 1 2 3 4 5 0 7 S 9 10 11 12 13 14 3 3 6 5 5 4 4 3 3 6 17 15 6 6 5 17 7 15 14 6 16 6 5 7 7 6 19 19 8 10 10 11 19 11 10 10 Table 1 1. Suppose a P2P network is connecting between city of Penang (PN) and Cyper Jaya (CT). The gateway router at PN is connected to the gateway router at CJ through THREE different links (L1, L2 and L3). Assume that the traffic load of PN is 20 packets/minute and all links transfers data in exponential distribution manners as L1 average transfer rate is 4 packets/minute with cost of RM10/minute, L2 average transfer rate is 6 packets/minute with cost of RM20/minute, and L3 average transfer rate is 10 packets/minute with cost of RM30 minute. Assume the telecommunication provider at PN preferred links with the lower cost for transferring user's data. (1) Use the random generation table in Table 1 to construct a simulation table for the first 15 incoming packets at PN router. (5 Marks/ Markah) (11) Evaluate L1 and L3 link utilization. (4 Marks/ Markah) (111) Compare between the communications costs for the following cases: Case 1: L1 is the most preferred to transfer followed by L2 and then L3. Case 2: L3 is the most preferred to transfer followed by L2 and then L1. ( Marks/ Markah)
