Question: Please answer c and d 3. (40%) For the frame shown below, consider only the effect of bending. (a) Discuss the static indeterminacy of the

Please answer c and d Please answer c and d 3. (40%) For the frame shown below,

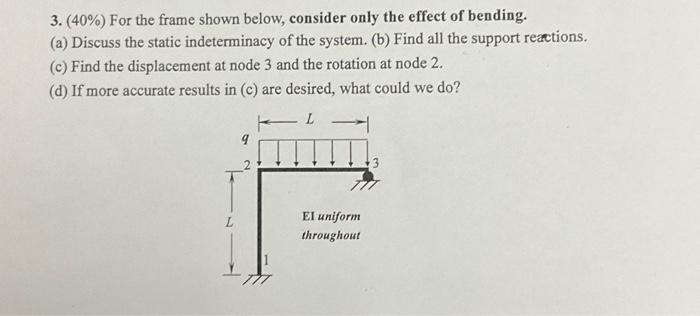

3. (40%) For the frame shown below, consider only the effect of bending. (a) Discuss the static indeterminacy of the system. (b) Find all the support reactions. (c) Find the displacement at node 3 and the rotation at node 2. (d) If more accurate results in (c) are desired, what could we do

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

3. (40%) For the frame shown below, consider only the effect of bending (neglect shear). (a) Discuss the static indeterminacy of the system. (b) Find all the support reactions. (c) Find the...

( 4 0 % ) For the frame shown below, consider only the effect of bending ( neglect shear ) . ( a ) Discuss the static indeterminacy of the system. ( b ) Find all the support reactions. ( c ) Find the...

For the frame shown below, consider only the effect of bending (neglect shear). (a) Discuss the static indeterminacy of the system. (b) Find all the support reactions. (c) Find the displacement at...
