Question: please answer! Part D- Application (Full Solutions are Required) [20 marks] 16. Below is a diagram showing two blocks joined with a rope that runs

please answer!

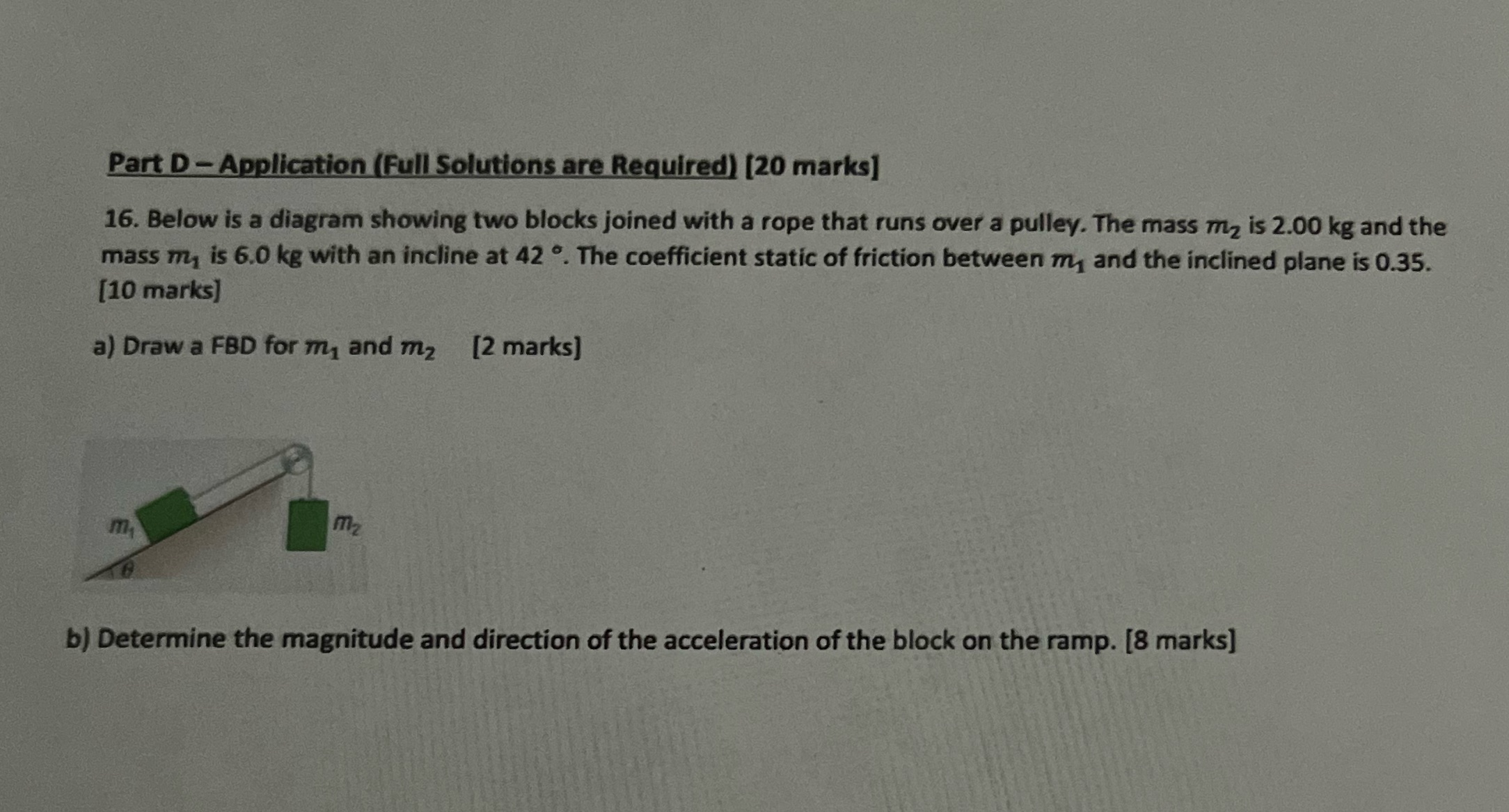

Part D- Application (Full Solutions are Required) [20 marks] 16. Below is a diagram showing two blocks joined with a rope that runs over a pulley. The mass mz is 2.00 kg and the mass m, is 6.0 kg with an incline at 42 .. The coefficient static of friction between m, and the inclined plane is 0.35. [10 marks] a) Draw a FBD for m, and mz [2 marks] mz b) Determine the magnitude and direction of the acceleration of the block on the ramp. [8 marks]

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
