Hvac Question

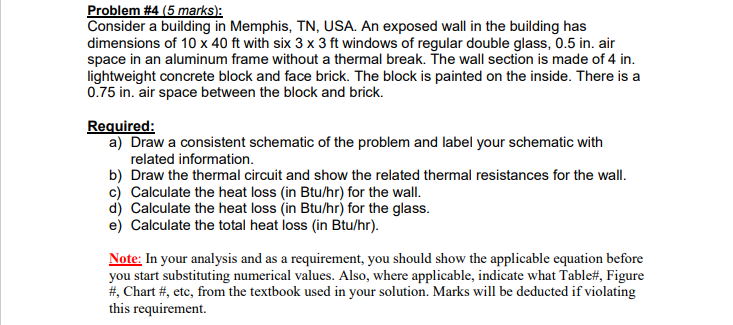

Problem #4 (5 marks): Consider a building in Memphis, TN, USA. An exposed wall in the building has dimensions of 10 x 40 ft with six 3 x 3 ft windows of regular double glass, 0.5 in. air space in an aluminum frame without a thermal break. The wall section is made of 4 in. lightweight concrete block and face brick. The block is painted on the inside. There is a 0.75 in. air space between the block and brick. Required: a) Draw a consistent schematic of the problem and label your schematic with related information. b) Draw the thermal circuit and show the related thermal resistances for the wall. c) Calculate the heat loss in Btu/hr) for the wall. d) Calculate the heat loss (in Btu/hr) for the glass. e) Calculate the total heat loss (in Btu/hr). Note: In your analysis and as a requirement, you should show the applicable equation before you start substituting numerical values. Also, where applicable, indicate what Table#, Figure #, Chart #, etc, from the textbook used in your solution. Marks will be deducted if violating this requirement
