Question: Please answer / show work for parts b - d in the following question Question 3 : ( 2 0 points ) For the structure

Please answer/show work for parts b-d in the following question

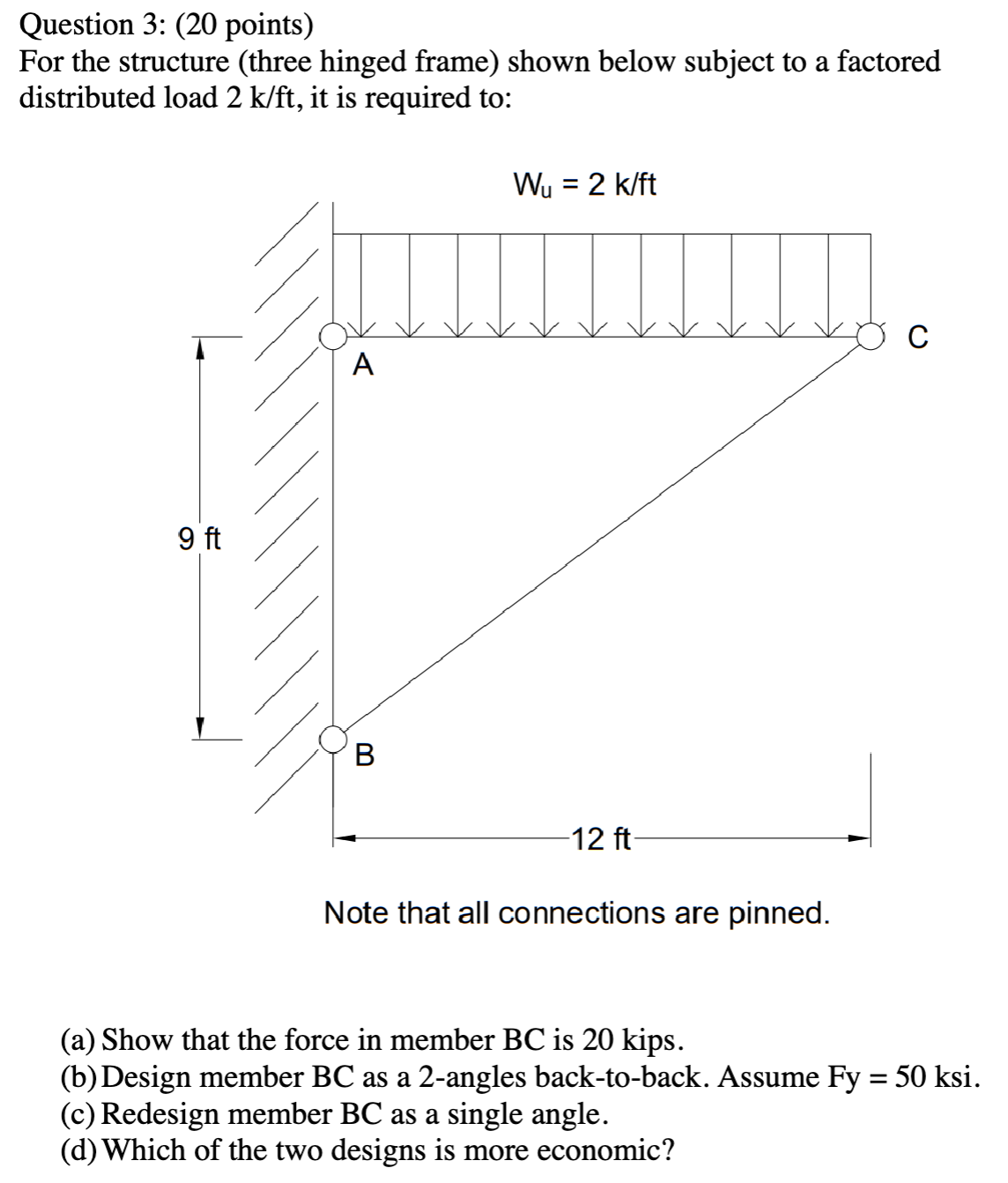

Question 3: (20 points)
For the structure (three hinged frame) shown below subject to a factored distributed load 2k//ft, it is required to:
Note that all connections are pinned.
(a) Show that the force in member BC is 20 kips.
(b)Design member BC as a 2-angles back-to-back. Assume Fy =50ksi.
(c) Redesign member BC as a single angle.
(d) Which of the two designs is more economic?
Please answer / show work for parts b - d in the
