Question: Please answer the problem hint: Answer are 1 9 8 . 9 7 kNm , 6 0 kNm , 3 5 8 . 8 1

Please answer the problem
hint: Answer are 198.97kNm,60kNm,358.81knm. Using 2010/2015

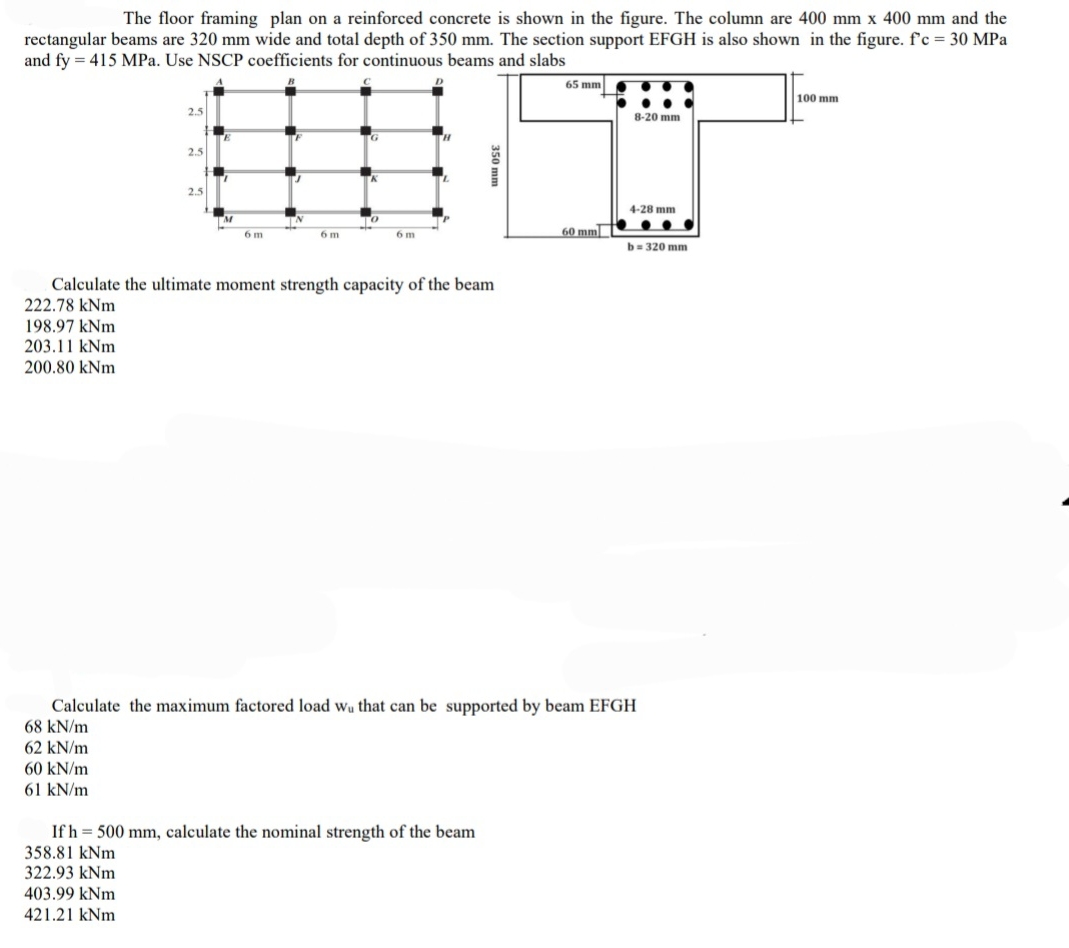

The floor framing plan on a reinforced concrete is shown in the figure. The column are 400mm400mm and the rectangular beams are 320mm wide and total depth of 350mm. The section support EFGH is also shown in the figure. f'c=30MPa and fy =415MPa. Use NSCP coefficients for continuous beams and slabs
Calculate the ultimate moment strength capacity of the beam 222.78kNm
198.97kNm
203.11kNm
200.80kNm
Calculate the maximum factored load wu that can be supported by beam EFGH
68kNm
62kNm
60kNm
61kNm
If h=500mm, calculate the nominal strength of the beam
358.81kNm
322.93kNm
403.99kNm
421.21kNm
Please answer the problem hint: Answer are 1 9 8
