Question: please answer the question showing full steps 5.24 An additive process model is depicted in the figure below. For G1=s1,G2=2s+14,G3=s+13,U(s)=1 (unit impulse) a. Derive the

please answer the question showing full steps

please answer the question showing full steps 5.24 An additive process model

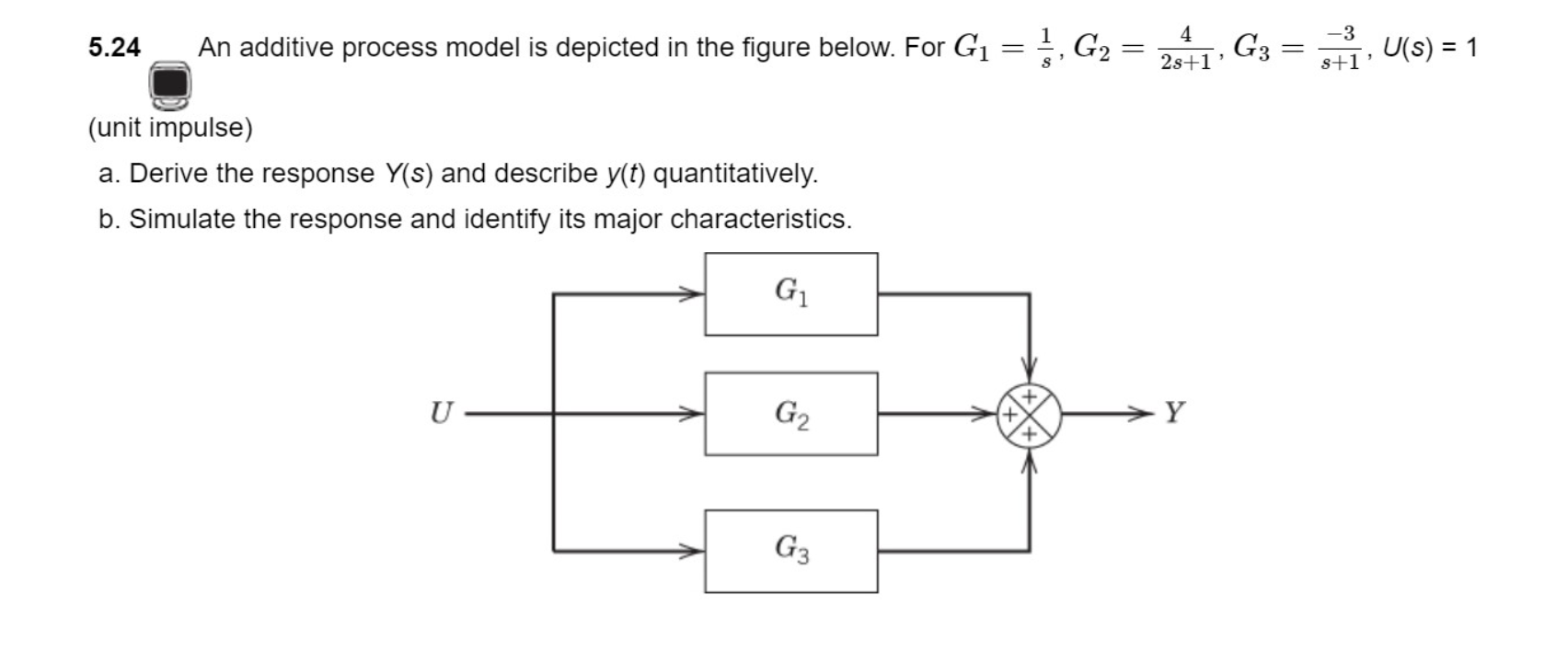

5.24 An additive process model is depicted in the figure below. For G1=s1,G2=2s+14,G3=s+13,U(s)=1 (unit impulse) a. Derive the response Y(s) and describe y(t) quantitatively. b. Simulate the response and identify its major characteristics

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!
