Question: Please answer this using NSCP 2 0 1 0 / 2 0 1 5 . Use four decimals, I will upvote if this problem answer

Please answer this using NSCP 2010/2015.Use four decimals, I will upvote if this problem answer correctly according to instruction above.

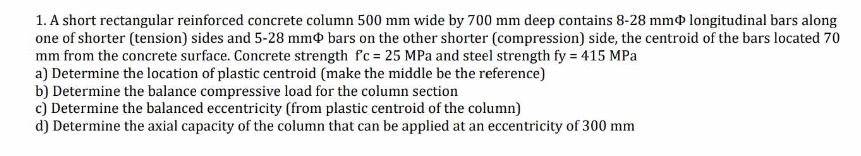

A short rectangular reinforced concrete column 500mm wide by 700mm deep contains 8-28mm longitudinal bars along one of shorter (tension) sides and 5-28mm bars on the other shorter (compression) side, the centroid of the bars located 70mm from the concrete surface. Concrete strength f'c=25MPa and steel strength fy=415MPa
a) Determine the location of plastic centroid (make the middle be the reference)
b) Determine the balance compressive load for the column section
c) Determine the balanced eccentricity (from plastic centroid of the column)
d) Determine the axial capacity of the column that can be applied at an eccentricity of 300mm
Please answer this using NSCP 2 0 1 0 / 2 0 1 5 .
