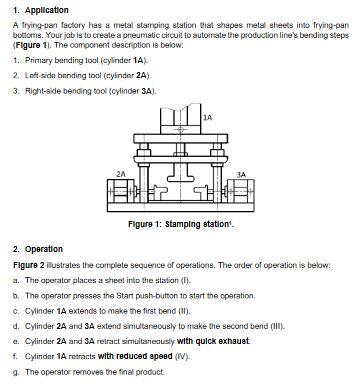

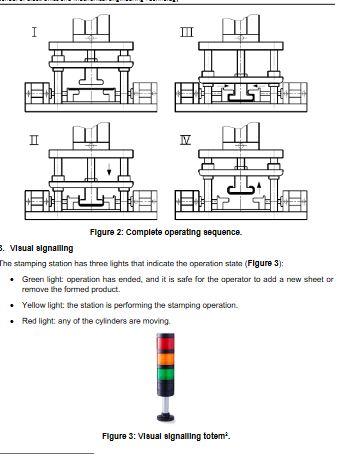

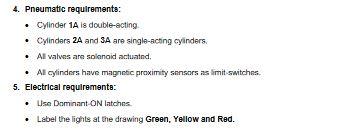

1. Application A frying-pant factory has a metal stamping station that shapes metal sheets into frying-pan bottoms. Your job is to create a pneumatic circuit to automate the production line's bending steps (Figure 1). The component description is below: 1. Primary bending tool (cylinder 1A 2. Left side bonding tool (cylinder 2A) 3. Right-side bending tool (cylinder 3A). 1A 2A Figure 1: Stamping station. 2. Operation Figure 2 ilustrates the complete sequence of operations. The order of operation is below: a. The operator places a sheet into the station (1) b. The operator presses the Start push-button to start the operation c. Cylinder 1A extends to make the first bend (U). d. Cylinder 2A and 3A extend simultaneously to make the second bend (III) e. Cylinder 2A and 3A retract simultaneously with quick exhaust f. Cylinder 1 retracts with reduced speed (IV) 9. The operator removes the final product I II V TEL : Figure 2: Complete operating sequence. 3. Visual signalling The stamping station has three lights that indicate the operation state (Figure 3); Green light operation has ended, and it is safe for the operator to add a new sheet or remove the formed product. Yellow light the station is performing the stamping operation Red light any of the cylinders are moving Figure 3: Visual signalling totemi. 4. Pneumatic requirements: Cylinder 1A is double-acting Cylinders 2A and 3A are singlo-acting cyinders. Al valves are solenoid actuated, Al cylinders have magnetic proximity sensors as imit switches. 5. Electrical requirements: Use Dominant ON latches. Label the lights at the drawing Green, yellow and Red. 1. Application A frying-pant factory has a metal stamping station that shapes metal sheets into frying-pan bottoms. Your job is to create a pneumatic circuit to automate the production line's bending steps (Figure 1). The component description is below: 1. Primary bending tool (cylinder 1A 2. Left side bonding tool (cylinder 2A) 3. Right-side bending tool (cylinder 3A). 1A 2A Figure 1: Stamping station. 2. Operation Figure 2 ilustrates the complete sequence of operations. The order of operation is below: a. The operator places a sheet into the station (1) b. The operator presses the Start push-button to start the operation c. Cylinder 1A extends to make the first bend (U). d. Cylinder 2A and 3A extend simultaneously to make the second bend (III) e. Cylinder 2A and 3A retract simultaneously with quick exhaust f. Cylinder 1 retracts with reduced speed (IV) 9. The operator removes the final product I II V TEL : Figure 2: Complete operating sequence. 3. Visual signalling The stamping station has three lights that indicate the operation state (Figure 3); Green light operation has ended, and it is safe for the operator to add a new sheet or remove the formed product. Yellow light the station is performing the stamping operation Red light any of the cylinders are moving Figure 3: Visual signalling totemi. 4. Pneumatic requirements: Cylinder 1A is double-acting Cylinders 2A and 3A are singlo-acting cyinders. Al valves are solenoid actuated, Al cylinders have magnetic proximity sensors as imit switches. 5. Electrical requirements: Use Dominant ON latches. Label the lights at the drawing Green, yellow and Red
