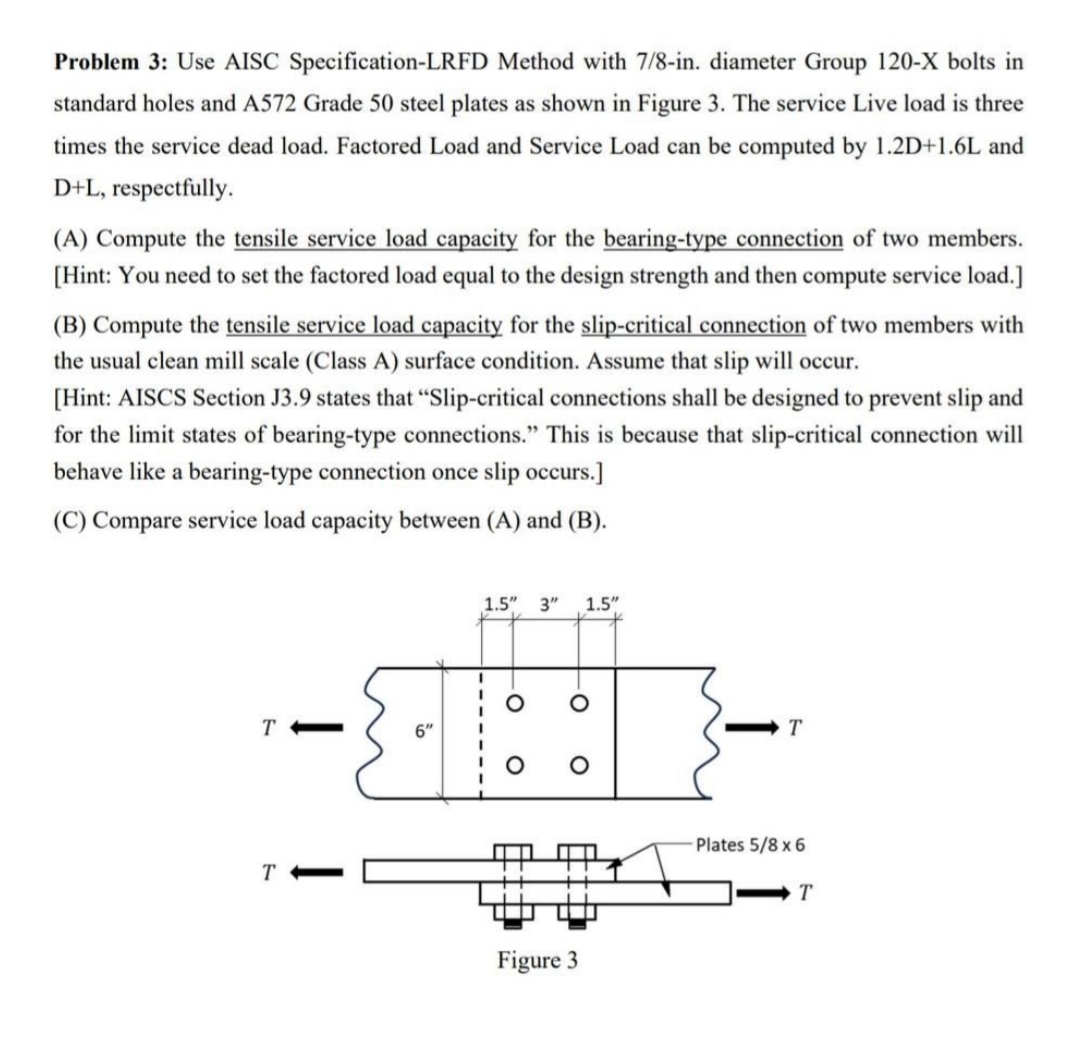

Problem $3$: Use AISC Specification$-$LRFD Method with $7/8-$in$.$ diameter Group $120-$X bolts in standard holes and A$572$ Grade $50$ steel plates as shown in Figure $3.$ The service Live load is three times the service dead load. Factored Load and Service Load can be computed by $1\mathrm{.}2$D$+1\mathrm{.}6$L and $D+L,$ respectfully.

$($A$)$ Compute the tensile service load capacity for the bearing$-$type connection of two members. $[$Hint: You need to set the factored load equal to the design strength and then compute service load.$]$

$($B$)$ Compute the tensile service load capacity for the slip$-$critical connection of two members with the usual clean mill scale $($Class A$)$ surface condition. Assume that slip will occur.

$[$Hint: AISCS Section J$3\mathrm{.}9$ states that "Slip$-$critical connections shall be designed to prevent slip and for the limit states of bearing$-$type connections." This is because that slip$-$critical connection will behave like a bearing$-$type connection once slip occurs.$]$

$($C$)$ Compare service load capacity between $($A$)$ and $($B$).$
