Question: Please be clear Required Information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part

Please be clear

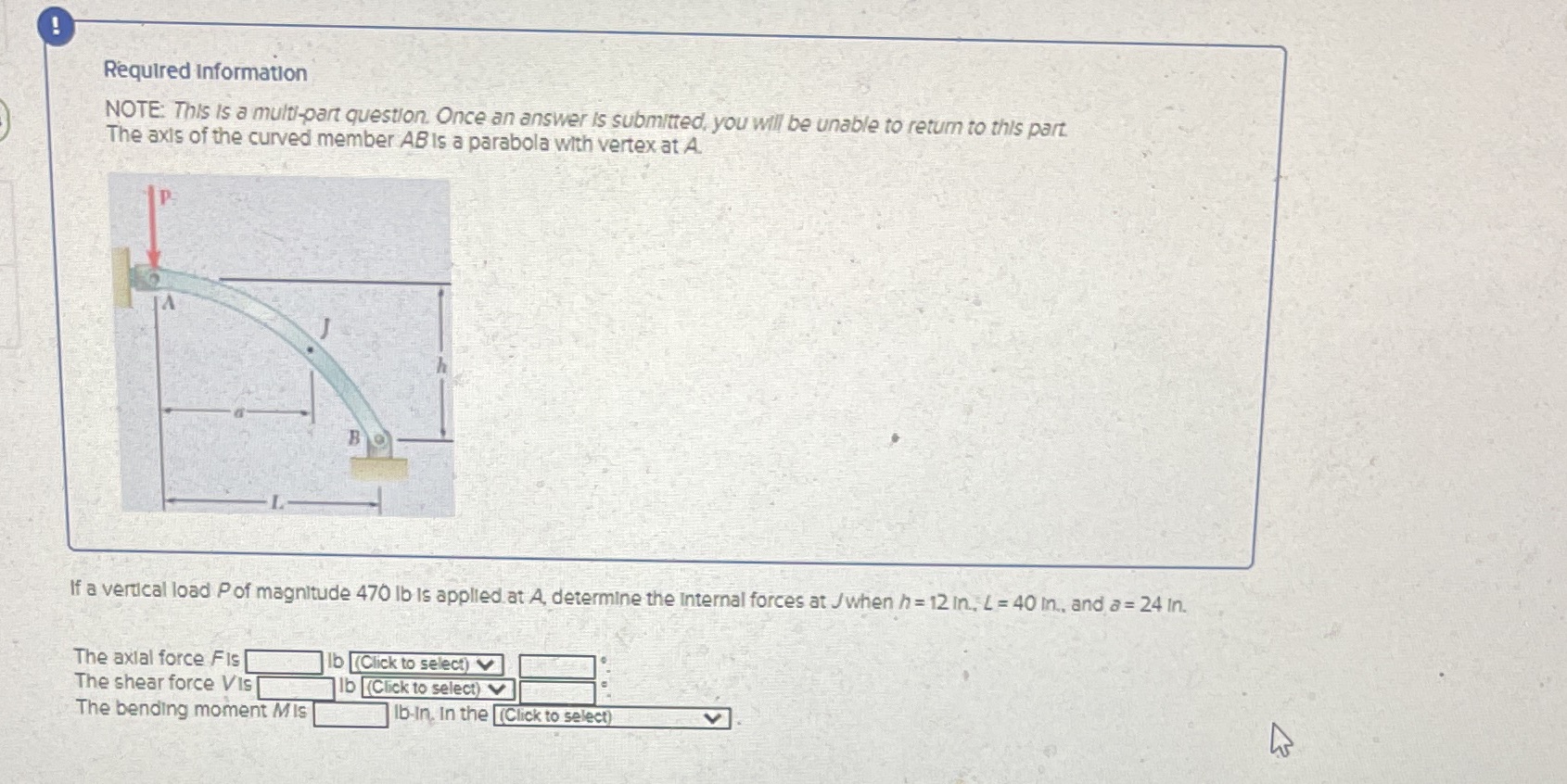

Required Information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part The axis of the curved member AB Is a parabola with vertex at A. BO If a vertical load P of magnitude 470 lb Is applied at A, determine the Internal forces at Jwhen h = 12 In, L = 40 mn., and a = 24 In. The axial force Fis Ib [Click to select) The shear force Vis Ib (Click to select) The bending moment M Is Ib-In. In the (Click to select)

Step by Step Solution

There are 3 Steps involved in it
