Question: Please be descriptive when doing the math its kinda confusing if you post an already derived equation. Using the distributed load on the beam shown

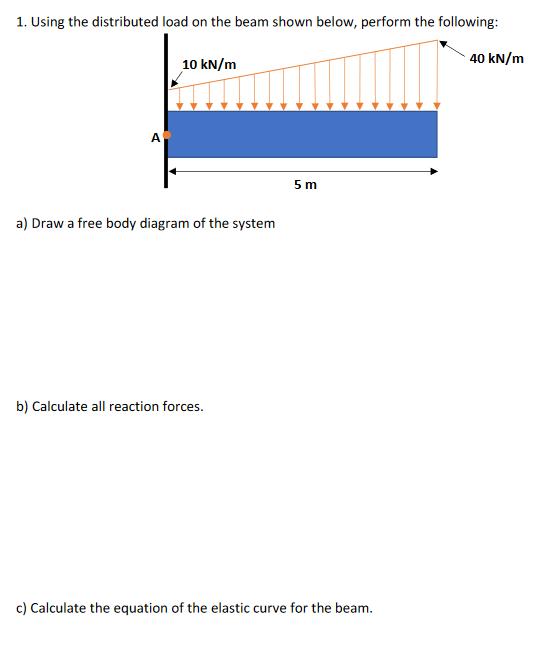

Please be descriptive when doing the math its kinda confusing if you post an already derived equation. Using the distributed load on the beam shown below, perform the following:

)

Draw a free body diagram of the system

)

Calculate all reaction forces.

)

Calculate the equation of the elastic curve for the beam.

Please be descriptive when doing the math its

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
