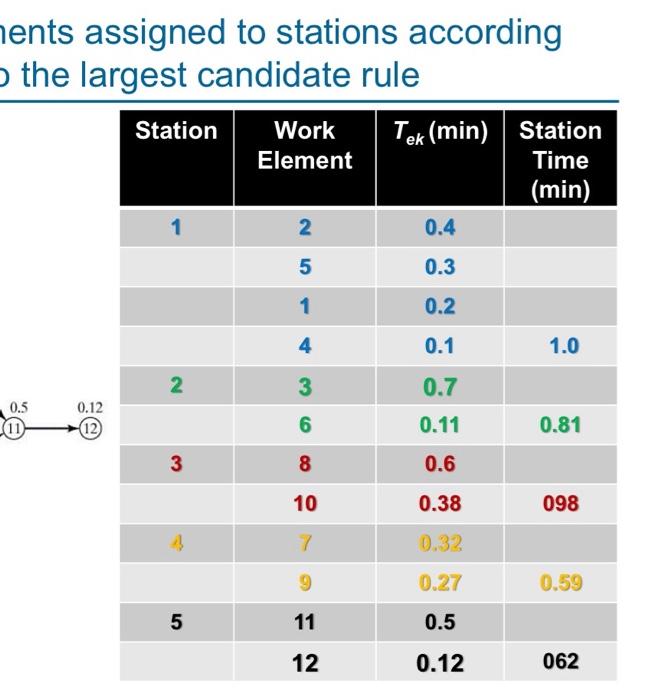

please can you solve them and for (c) Using largest candidate rule, assign work elements to stations. do it at the same as the example please i should submit it today !

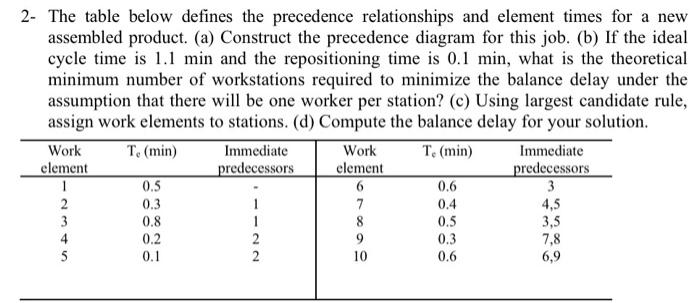

2- The table below defines the precedence relationships and element times for a new assembled product. (a) Construct the precedence diagram for this job. (b) If the ideal cycle time is 1.1min and the repositioning time is 0.1min, what is the theoretical minimum number of workstations required to minimize the balance delay under the assumption that there will be one worker per station? (c) Using largest candidate rule, assign work elements to stations. (d) Compute the balance delay for your solution. ents assigned to stations according the largest candidate rule
