Question: Please do all parts. Part A: Determine the x component of internal normal force acting at a section passing through point B on the left

Please do all parts.

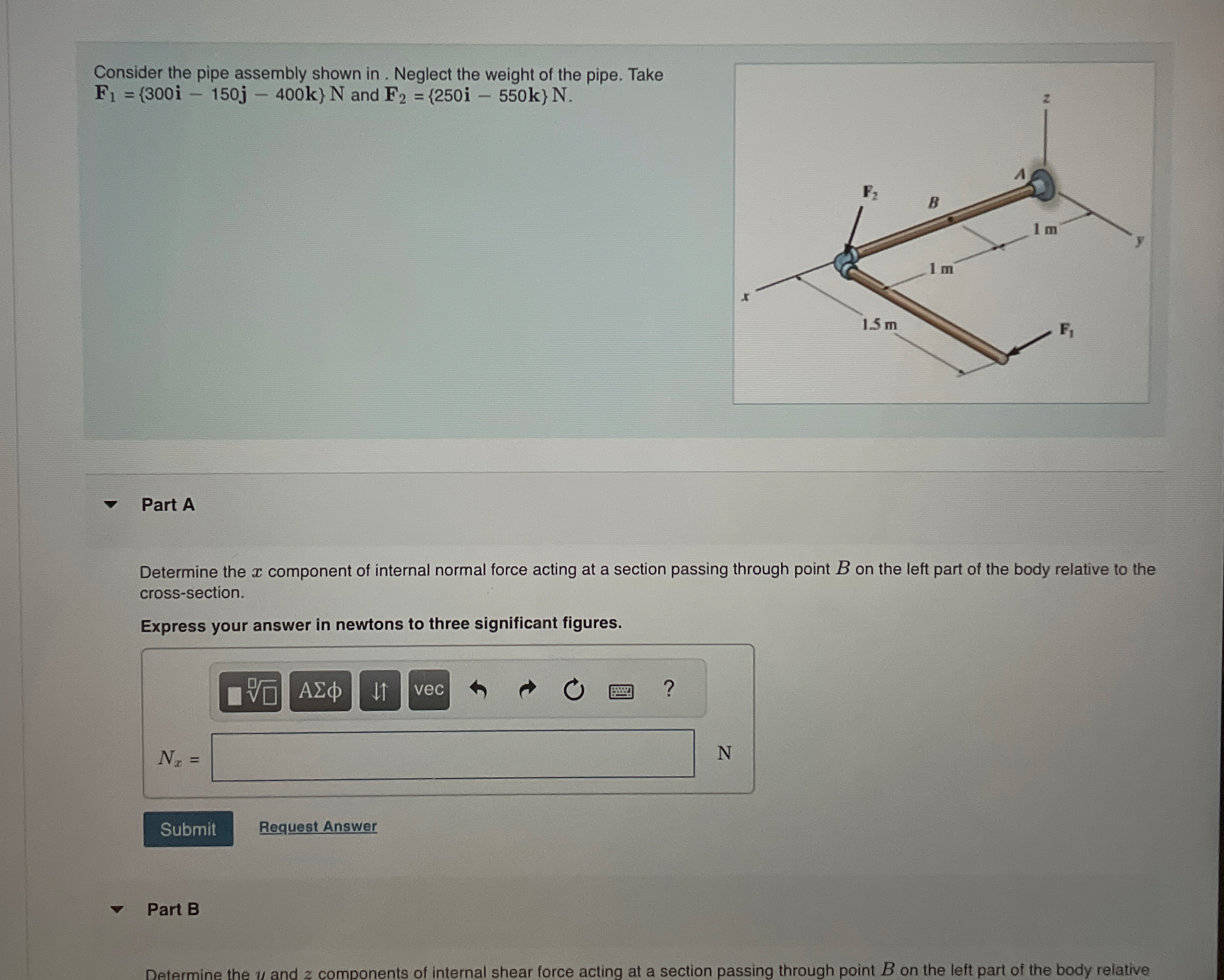

Part A: Determine the x component of internal normal force acting at a section passing through point B on the left part of the body relative to the cross-section. Answer in newtons Nx = N
Part B: Determine the y and z components of internal shear force acting at a section passing through point B on the left part of the body relative to the cross-section. Answer in newtons. Vy, Vx = N
Part C: Determine the x, y, and z components of internal moment acting at a section passing through point B on the left part of the body relative to the cross-section. Answer in newtons-meters. Mx, My, Mz = N m
Please do all parts. Part A: Determine the x
