Question: Please do and I will like Question 1 Show controls for: (i) column pressure by venting or addition of N2 (split-range) (ii) accumulator level by

Please do and I will like Question 1 Show controls for:

Please do and I will like

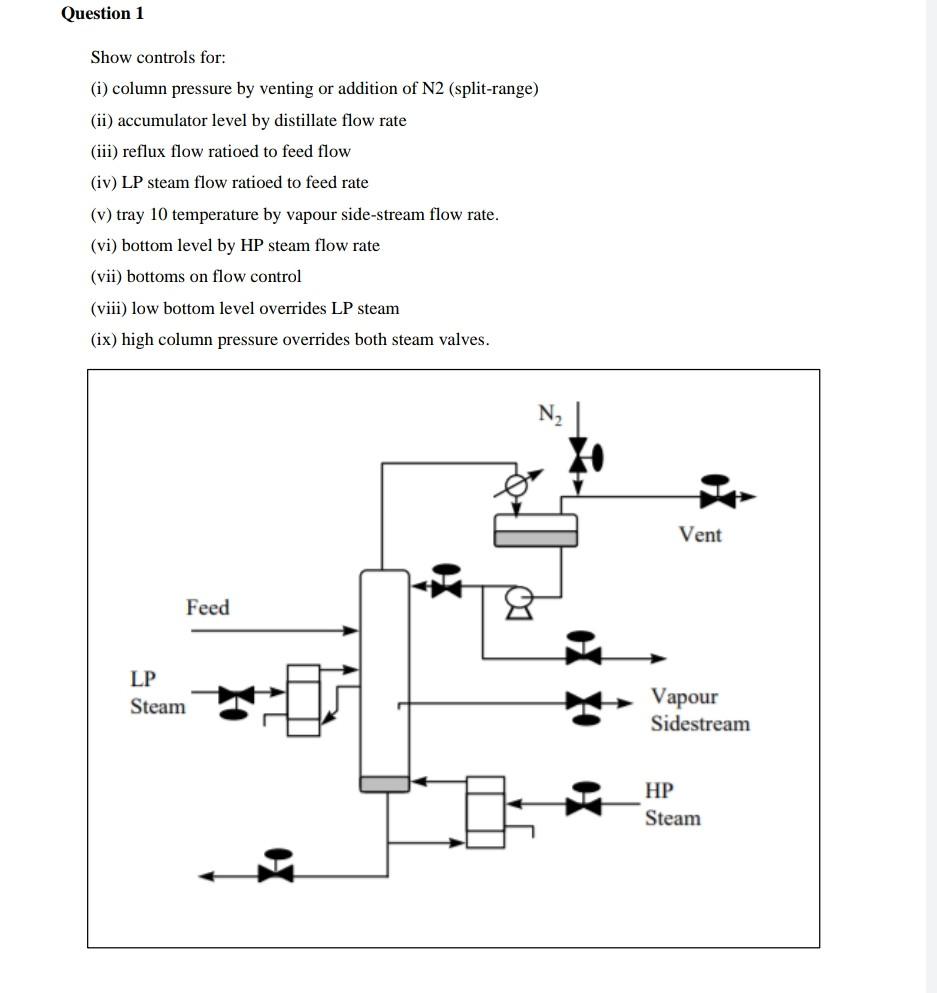

Question 1 Show controls for: (i) column pressure by venting or addition of N2 (split-range) (ii) accumulator level by distillate flow rate (iii) reflux flow ratioed to feed flow (iv) LP steam flow ratioed to feed rate (v) tray 10 temperature by vapour side-stream flow rate. (vi) bottom level by HP steam flow rate (vii) bottoms on flow control (viii) low bottom level overrides LP steam (ix) high column pressure overrides both steam valves. N Vent Feed . LP Steam Vapour Sidestream : HP Steam

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
