Question: Please do and I will like Question 5 The feed arrangement for a phthalic anhydride plant is shown. Add measurement and control details to achieve

Please do and I will like Question 5 The feed arrangement

Please do and I will like

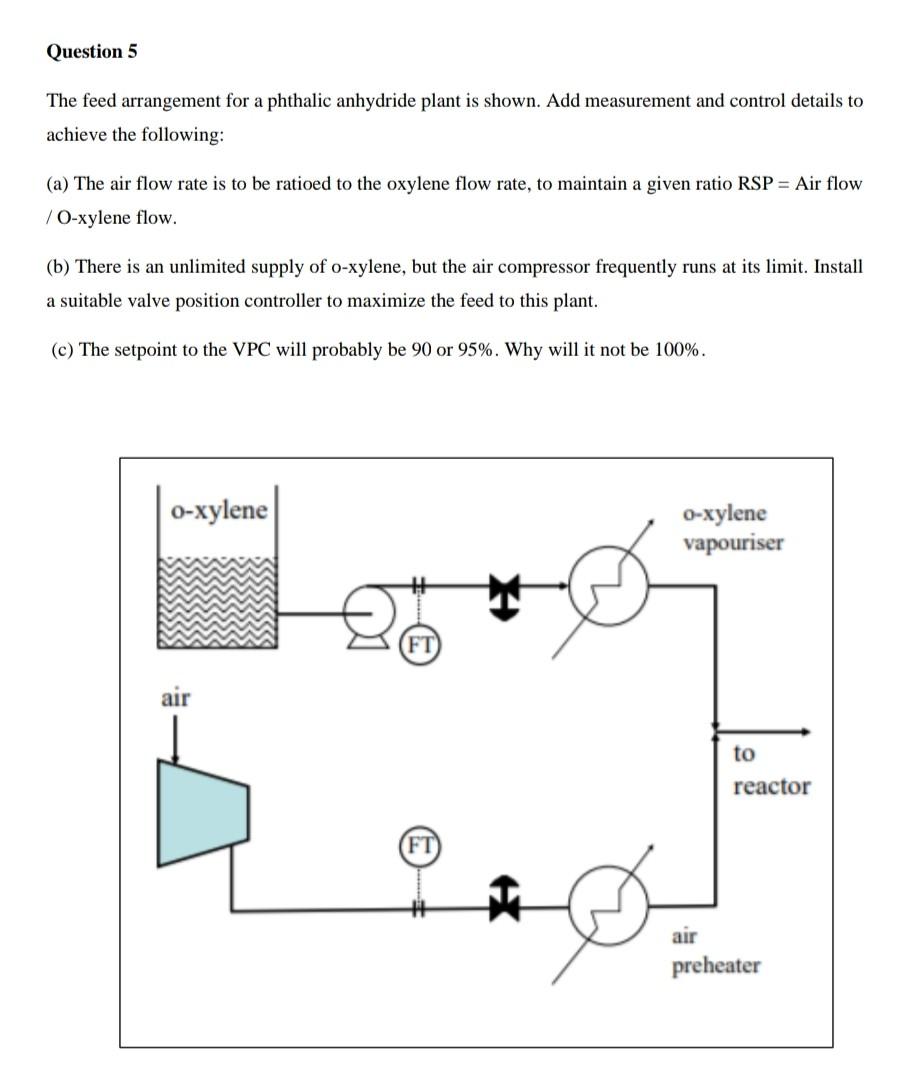

Question 5 The feed arrangement for a phthalic anhydride plant is shown. Add measurement and control details to achieve the following: (a) The air flow rate is to be ratioed to the oxylene flow rate, to maintain a given ratio RSP = Air flow 70-xylene flow. (b) There is an unlimited supply of o-xylene, but the air compressor frequently runs at its limit. Install a suitable valve position controller to maximize the feed to this plant. (c) The setpoint to the VPC will probably be 90 or 95%. Why will it not be 100%. 0-xylene 0-xylene vapouriser air to reactor air preheater
