Question: Please do it in Python The performance of a centrifugal pump that is going to be used in a laboratory experiment is given in the

Please do it in Python

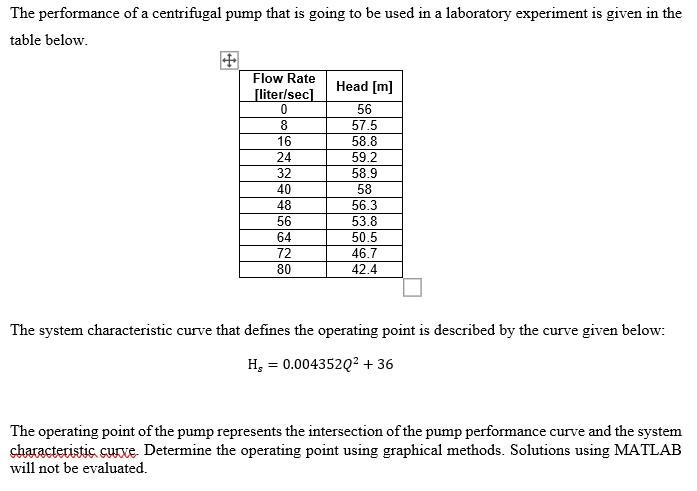

The performance of a centrifugal pump that is going to be used in a laboratory experiment is given in the table below. Flow Rate [liter/sec) 0 8 16 24 32 40 48 56 64 72 80 Head [m] 56 57.5 58.8 59.2 58.9 58 56.3 53.8 50.5 46.7 42.4 The system characteristic curve that defines the operating point is described by the curve given below: Hg = 0.004352Q2 + 36 The operating point of the pump represents the intersection of the pump performance curve and the system characteristic curve. Determine the operating point using graphical methods. Solutions using MATLAB will not be evaluated
Step by Step Solution
There are 3 Steps involved in it
Get step-by-step solutions from verified subject matter experts
