Please do not use any program for solution.

Show all cost parameter ; BV and NBV and (teta) Q ( such as ; c12 = y1-y2-c12=0 , ............ cij...)

Im waiting guys.

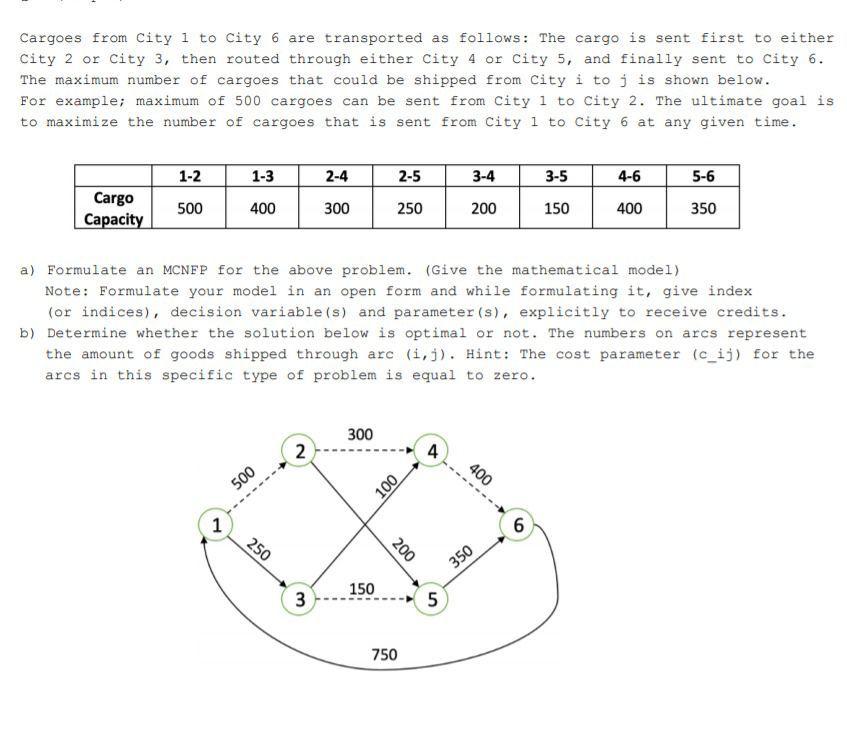

0 Cargoes from City i to City 6 are transported as follows: The cargo is sent first to either City 2 or City 3, then routed through either City 4 or City 5, and finally sent to City 6. The maximum number of cargoes that could be shipped from City i to j is shown below. For example; maximum of 500 cargoes can be sent from City 1 to City 2. The ultimate goal is to maximize the number of cargoes that is sent from City 1 to City 6 at any given time. 1-2 1-3 2-4 2-5 3-4 3-5 4-6 5-6 Cargo Capacity 500 400 300 250 200 150 400 350 a) Formulate an MCNFP for the above problem. (Give the mathematical model) Note: Formulate your model in an open form and while formulating it, give index (or indices), decision variable(s) and parameter(s), explicitly to receive credits. b) Determine whether the solution below is optimal or not. The numbers on arcs represent the amount of goods shipped through arc (1,1). Hint: The cost parameter (c_ij) for the arcs in this specific type of problem is equal to zero. 300 2 4 ---- 400 500 . 100 1 6 250 200 350 150 3 3 5 5 750
