Question: Please Do the Bottom one!! Two - point Perspective Given the Top, Front and Right - side Orthographic views of an object, construct a Two

Please Do the Bottom one!!
Two-point Perspective

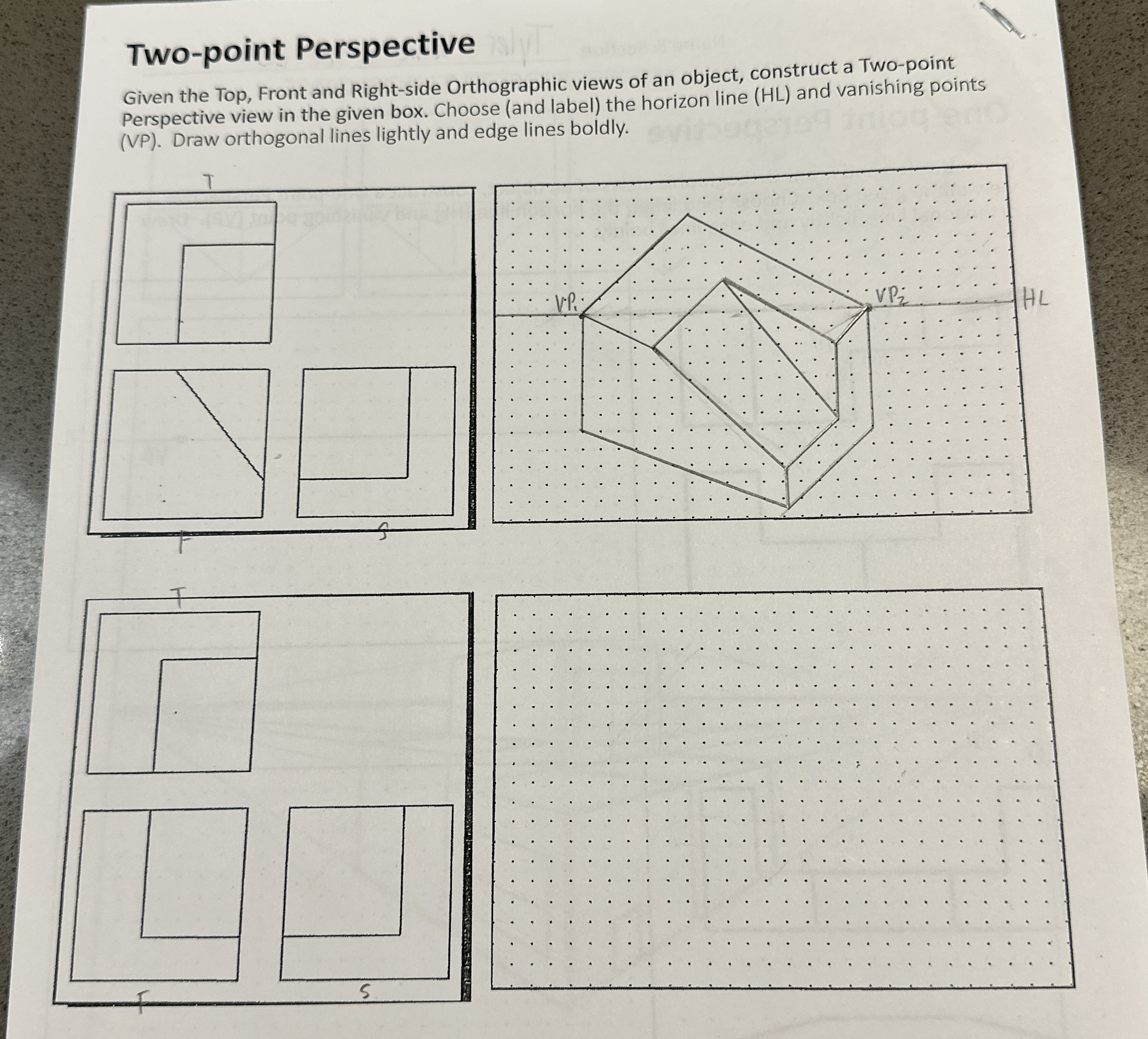

Given the Top, Front and Right-side Orthographic views of an object, construct a Two-point Perspective view in the given box. Choose (and label) the horizon line ( HL ) and vanishing points (VP). Draw orthogonal lines lightly and edge lines boldly.
Please Do the Bottom one!! Two - point

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
