PLEASE DON'T ATTEMPT THIS IF YOU'RE UNSURE. I AM STUCK ON THIS AND NEED A LOT OF HELP!! THANK YOU!

PROJECT 3 SKELETON:

.org 0x10000000

# Initializations

li $sp, 0x10fffffc

# Initialize any registers you will be using here.

# It can be helpful to include a comment about a register's purpose

# next to an initialization at the start of the program for reference.

j main

nop

array_ptr: # Label pointing to 100 word array

.space 100

main:

# TODO: write your primary program within this loop

j main

nop

PROJECT 3 PRINT FILE "project3_print":

li $a0, control_message_p3

jal libplp_uart_write_string_p3

nop

control_flow_trap_p3:

j control_flow_trap_p3

nop

string_yes_p3:

.asciiz "Yes "

string_no_p3:

.asciiz " No "

control_message_p3:

.asciiz "Error: Program entered project3_print.asm due to missing control flow at the end of main.asm "

project3_print:

push $ra

bne $a0 $0, set_ptr_yes

nop

li $a0, string_no_p3

j print_string_p3

nop

set_ptr_yes:

li $a0, string_yes_p3

print_string_p3:

jal libplp_uart_write_string_p3

nop

pop $ra

return

# From PLP UART Library

libplp_uart_write_p3:

lui $t0, 0xf000 #uart base address

libplp_uart_write_loop_p3:

lw $t1, 4($t0) #get the uart status

andi $t1, $t1, 0x01 #mask for the cts bit

beq $t1, $zero, libplp_uart_write_loop_p3

nop

sw $a0, 12($t0) #write the data to the output buffer

sw $t1, 0($t0) #send the data!

jr $31

nop

libplp_uart_write_string_p3: #we have a pointer to the string in a0, just loop and increment until we see a \0

move $t9, $31 #save the return address

move $t8, $a0 #save the argument

libplp_uart_write_string_multi_word_p3:

lw $a0, 0($t8) #first 1-4 characters

ori $t0, $zero, 0x00ff #reverse the word to make it big endian

and $t1, $t0, $a0 #least significant byte

sll $t1, $t1, 24

srl $a0, $a0, 8

and $t2, $t0, $a0 #second byte

sll $t2, $t2, 16

srl $a0, $a0, 8

and $t3, $t0, $a0 #third byte

sll $t3, $t3, 8

srl $a0, $a0, 8 #last byte in a0

or $a0, $t1, $a0

or $a0, $t2, $a0

or $a0, $t3, $a0

beq $a0, $zero, libplp_uart_write_string_done_p3

nop

ori $t7, $zero, 4

libplp_uart_write_string_loop_p3:

jal libplp_uart_write_p3 #write this byte

addiu $t7, $t7, -1

srl $a0, $a0, 8

bne $a0, $zero, libplp_uart_write_string_loop_p3

nop

beq $t7, $zero, libplp_uart_write_string_multi_word_p3

addiu $t8, $t8, 4 #increment for the next word

libplp_uart_write_string_done_p3:

jr $t9 #go home

nop

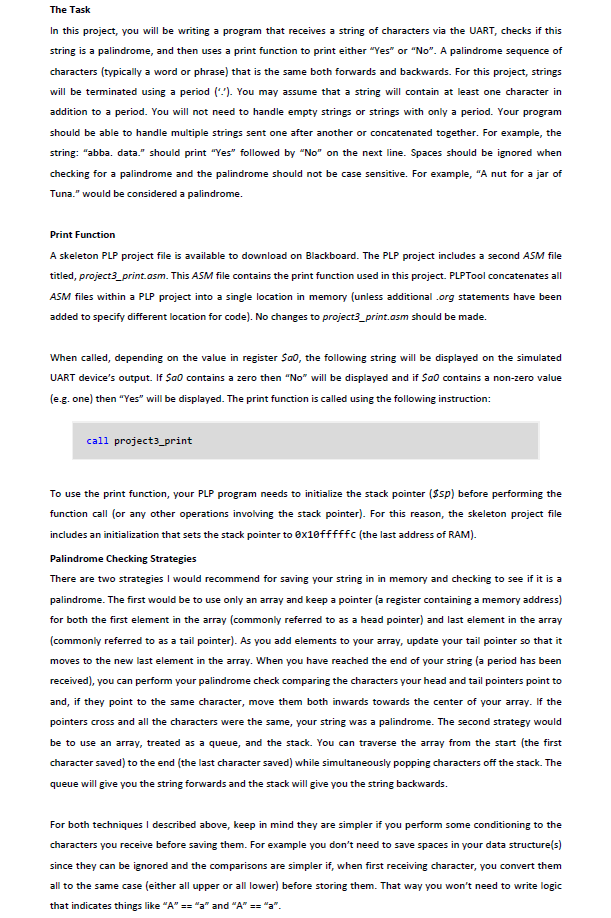

The Task In this project, you will be writing a program that receives a string of characters via the UART, checks if this string is a palindrome, and then uses a print function to print either "Yes" or "No". A palindrome sequence of characters (typically a word or phrase) that is the same both forwards and backwards. For this project, strings will be terminated using a periodYou may assume that a string will contain at least one character in addition to a period. You will not need to handle empty strings or strings with only a period. Your program should be able to handle multiple strings sent one after another or concatenated together. For example, the string: "abba. data." should print "Yes" followed by "No" on the next line. Spaces should be ignored when checking for a palindrome and the palindrome should not be case sensitive. For example, "A nut for a jar of Tuna." would be considered a palindrome. Print Function A skeleton PLP project file is available to download on Blackboard. The PLP project includes a second ASM file titled, project3_print.asm. This ASM file contains the print function used in this project. PLPTool concatenates all ASM files within a PLP project into a single location in memory (unless additional .org statements have been added to specify different location for code). No changes to project3_print.asm should be made. When called, depending on the value in register Sa0, the following string will be displayed on the simulated UART device's output. If Sa0 contains a zero then "No" will be displayed and if Sa0 contains a non-zero value (e.g. one) then "Yes will be displayed. The print function is called using the following instruction: call project3_print To use the print function, your PLP program needs to initialize the stack pointer ($sp) before performing the function call (or any other operations involving the stack pointer). For this reason, the skeleton project file includes an initialization that sets the stack pointer to ex1efffffc (the last address of RAM). Palindrome Checking Strategies There are two strategies I would recommend for saving your string in in memory and checking to see if it is a palindrome. The first would be to use only an array and keep a pointer (a register containing a memory address for both the first element in the array (commonly referred to as a head pointer) and last element in the array (commonly referred to as a tail pointer). As you add elements to your array, update your tail pointer so that it moves to the new last element in the array. When you have reached the end of your string (a period has been received), you can perform your palindrome check comparing the characters your head and tail pointers point to and, if they point to the same character, move them both inwards towards the center of your array. the pointers cross and all the characters were the same, your string was a palindrome. The second strategy would be to use an array, treated as a queue, and the stack. You can traverse the array from the start (the first character saved) to the end (the last character saved) while simultaneously popping characters off the stack. The queue will give you the string forwards and the stack will give you I the string backwards. For both techniques I described above, keep in mind they are simpler if you perform some conditioning to the characters you receive before saving them. For example you don't need to save spaces in your data structure(s) since they can be ignored and the comparisons are simpler if, when first receiving character, you convert them all to the same case (either all upper or all lower) before storing them. That way you won't need to write logic that indicates things like "A" and "A"a The Task In this project, you will be writing a program that receives a string of characters via the UART, checks if this string is a palindrome, and then uses a print function to print either "Yes" or "No". A palindrome sequence of characters (typically a word or phrase) that is the same both forwards and backwards. For this project, strings will be terminated using a periodYou may assume that a string will contain at least one character in addition to a period. You will not need to handle empty strings or strings with only a period. Your program should be able to handle multiple strings sent one after another or concatenated together. For example, the string: "abba. data." should print "Yes" followed by "No" on the next line. Spaces should be ignored when checking for a palindrome and the palindrome should not be case sensitive. For example, "A nut for a jar of Tuna." would be considered a palindrome. Print Function A skeleton PLP project file is available to download on Blackboard. The PLP project includes a second ASM file titled, project3_print.asm. This ASM file contains the print function used in this project. PLPTool concatenates all ASM files within a PLP project into a single location in memory (unless additional .org statements have been added to specify different location for code). No changes to project3_print.asm should be made. When called, depending on the value in register Sa0, the following string will be displayed on the simulated UART device's output. If Sa0 contains a zero then "No" will be displayed and if Sa0 contains a non-zero value (e.g. one) then "Yes will be displayed. The print function is called using the following instruction: call project3_print To use the print function, your PLP program needs to initialize the stack pointer ($sp) before performing the function call (or any other operations involving the stack pointer). For this reason, the skeleton project file includes an initialization that sets the stack pointer to ex1efffffc (the last address of RAM). Palindrome Checking Strategies There are two strategies I would recommend for saving your string in in memory and checking to see if it is a palindrome. The first would be to use only an array and keep a pointer (a register containing a memory address for both the first element in the array (commonly referred to as a head pointer) and last element in the array (commonly referred to as a tail pointer). As you add elements to your array, update your tail pointer so that it moves to the new last element in the array. When you have reached the end of your string (a period has been received), you can perform your palindrome check comparing the characters your head and tail pointers point to and, if they point to the same character, move them both inwards towards the center of your array. the pointers cross and all the characters were the same, your string was a palindrome. The second strategy would be to use an array, treated as a queue, and the stack. You can traverse the array from the start (the first character saved) to the end (the last character saved) while simultaneously popping characters off the stack. The queue will give you the string forwards and the stack will give you I the string backwards. For both techniques I described above, keep in mind they are simpler if you perform some conditioning to the characters you receive before saving them. For example you don't need to save spaces in your data structure(s) since they can be ignored and the comparisons are simpler if, when first receiving character, you convert them all to the same case (either all upper or all lower) before storing them. That way you won't need to write logic that indicates things like "A" and "A"a
