Question: ( Please don't use AI to solve it ! Thanks. ) The roof of a single - story storage building is subjected to a uniformly

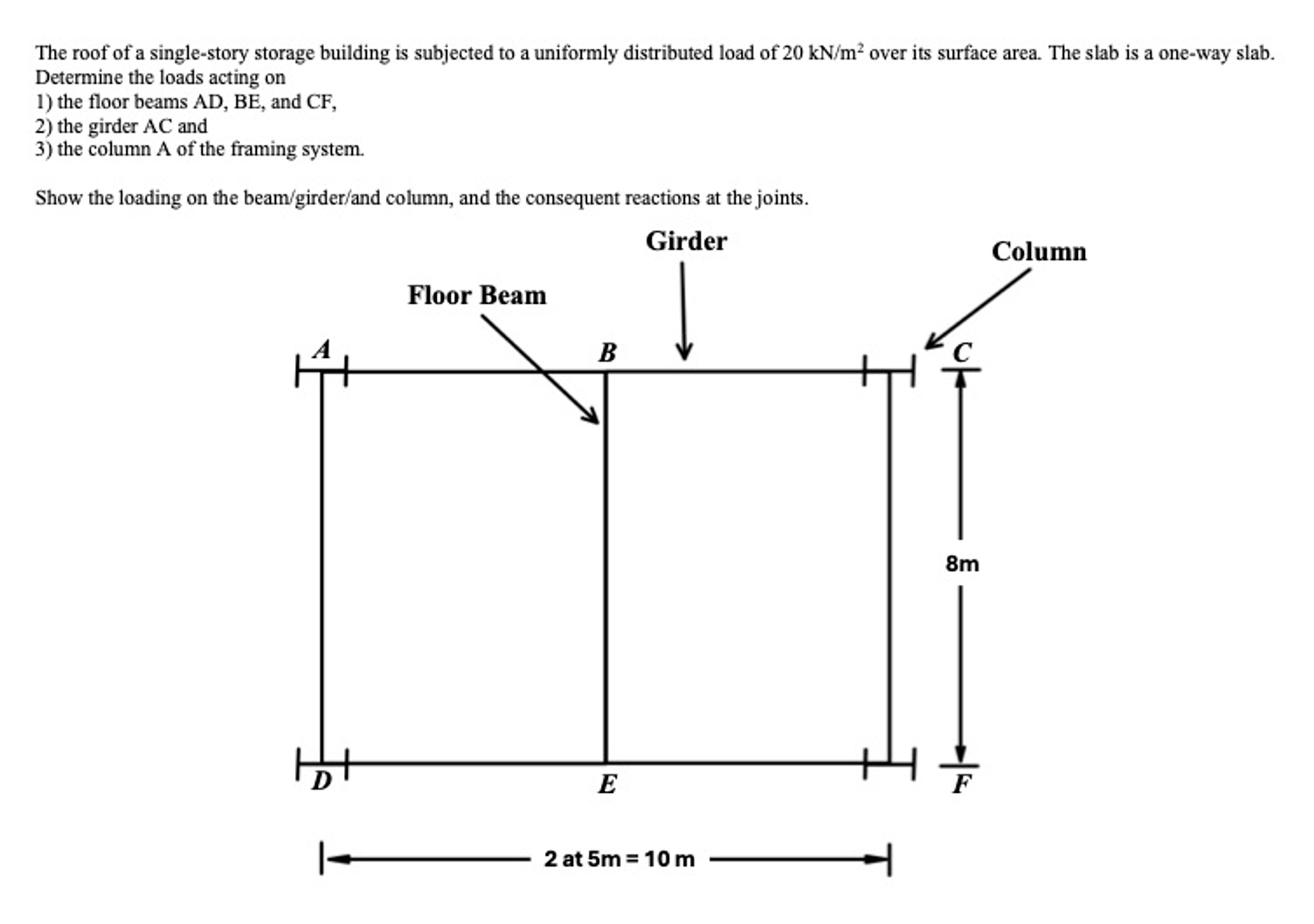

(Please don't use AI to solve it! Thanks.) The roof of a single-story storage building is subjected to a uniformly distributed load of 20kN//m^(2) over its surface area. The slab is a one-way slab.
Determine the loads acting on
the floor beams AD,BE, and CF ,
the girder AC and
the column A of the framing system.
Show the loading on the beam/girder/and column, and the consequent reactions at the joints.
( Please don't use AI to solve it ! Thanks. ) The

Step by Step Solution

There are 3 Steps involved in it
