Question: please draw the network diagram using Activity on NODE Predecessors Activity List for a Board Fence Project Activity Description Duration Days 1 Mobilize 1 2

please draw the network diagram using Activity on NODE

please draw the network diagram using Activity on

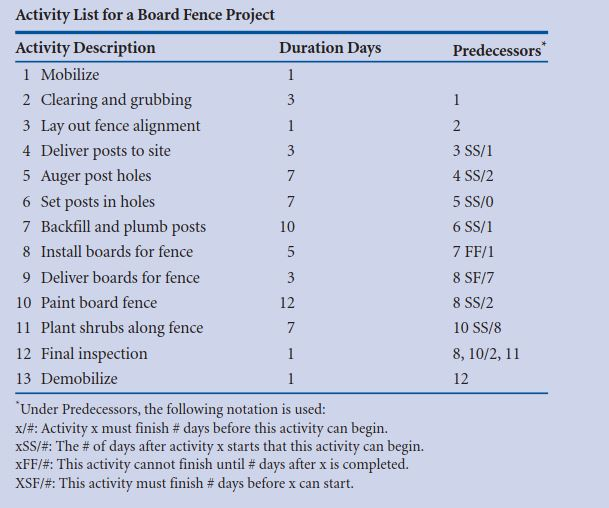

Predecessors Activity List for a Board Fence Project Activity Description Duration Days 1 Mobilize 1 2 Clearing and grubbing 3 3 Lay out fence alignment 1 4 Deliver posts to site 3 5 Auger post holes 7 6 Set posts in holes 7 7 Backfill and plumb posts 10 8 Install boards for fence 5 9 Deliver boards for fence 3 10 Paint board fence 12 11 Plant shrubs along fence 7 12 Final inspection 1 13 Demobilize 1 'Under Predecessors, the following notation is used: x/#: Activity x must finish # days before this activity can begin. XSS/#: The # of days after activity x starts that this activity can begin. xFF/#: This activity cannot finish until # days after x is completed. XSF/#: This activity must finish # days before x can start. 1 2 3 SS/1 4 SS/2 5 SS/0 6 SS/1 7 FF/1 8 SF/7 8 SS/2 10 SS/8 8, 10/2, 11 12
