Question: Please draw the network diagram with all the time lines (Earliest and Latest Start and Finish) Predecessor Week Activity A 2 3 B Ic A

Please draw the network diagram with all the time lines (Earliest and Latest Start and Finish)
Please draw the network diagram with all the time

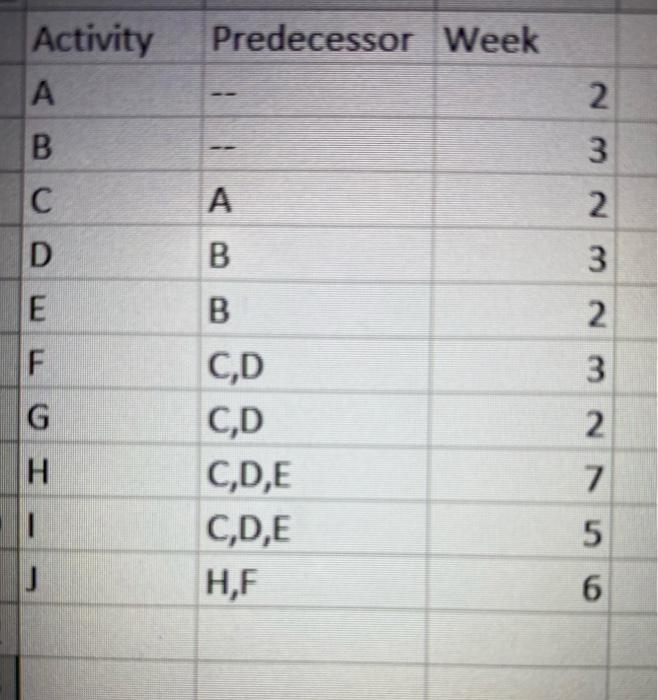

Predecessor Week Activity A 2 3 B Ic A 2 D B 3 E B ) 2. F 3 I o I G 2 CD C,D C,D,E C,D,E H,F 7 I 5 J 6

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
