Question: . Please Explain and PLEASE use the table provided from F0 to RA 4. Determine IP and frame header information for a data packet. (10

. Please Explain and PLEASE use the table

Please Explain and PLEASE use the table provided from F0 to RA

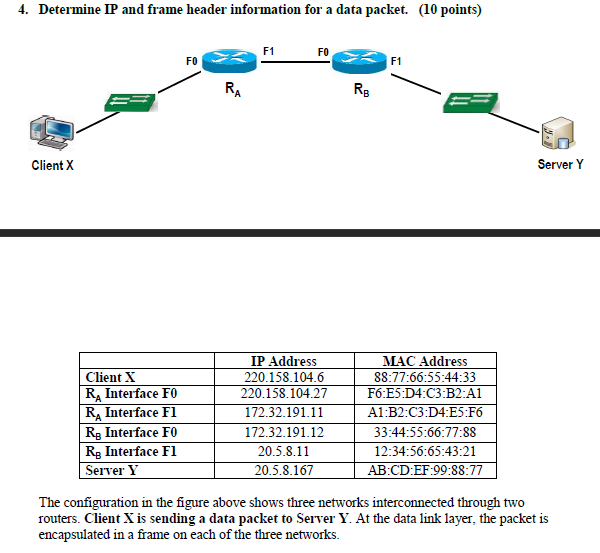

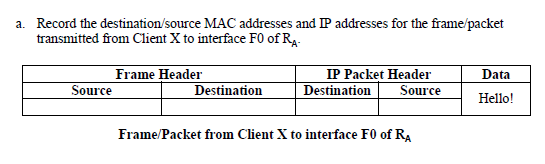

4. Determine IP and frame header information for a data packet. (10 points) F1 FO FO F1 RA RE Client X Server Y Client X RA Interface FO RA Interface F1 Rg Interface FO Rg Interface F1 Server Y IP Address 220.158.104.6 220.158.104.27 172.32.191.11 172.32.191.12 20.5.8.11 20.5.8.167 MAC Address 88:77:66:55:44:33 F6:E5:04:C3:B2:A1 A1:B2:C3:D4:ES:F6 33:44:55:66:77:88 12:34:56:65:43:21 AB:CD:EF:99:88:77 The configuration in the figure above shows three networks interconnected through two routers. Client X is sending a data packet to Server Y. At the data link layer, the packet is encapsulated in a frame on each of the three networks. a. Record the destination source MAC addresses and IP addresses for the frame/packet transmitted from Client X to interface FO of RA Data Frame Header Source Destination IP Packet Header Destination Source Hello! Frame/Packet from Client X to interface FO of RA

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image
