Question: Please explain the answer step by step Question 1 The following code snippet is an example of branch instruction usage. 00001000 start move.b 14,00 Display

Please explain the answer step by step

Please explain the answer step by step Question 1 The following code

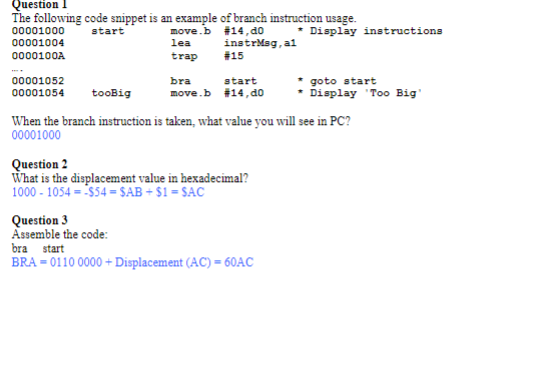

Question 1 The following code snippet is an example of branch instruction usage. 00001000 start move.b 14,00 Display instructions 00001004 lea instrMag.al 0000100A trap #15 00001052 00001054 bra move.b start #14, do goto start + Display "Too Big tooBig When the branch instruction is taken, what value you will see in PC? 00001000 Question 2 What is the displacement value in hexadecimal? 1000 - 1054 - $54 - SAB+$1 = SAC Question 3 Assemble the code: bra start BRA-0110 0000 + Displacement (AC) = 60AC Question 1 The following code snippet is an example of branch instruction usage. 00001000 start move.b 14,00 Display instructions 00001004 lea instrMag.al 0000100A trap #15 00001052 00001054 bra move.b start #14, do goto start + Display "Too Big tooBig When the branch instruction is taken, what value you will see in PC? 00001000 Question 2 What is the displacement value in hexadecimal? 1000 - 1054 - $54 - SAB+$1 = SAC Question 3 Assemble the code: bra start BRA-0110 0000 + Displacement (AC) = 60AC
