Question: please explain the steps. thanks! 2 . 3 0 Calculate the force f y applied perpendicularly to the rigid lever O C at B -

please explain the steps. thanks!
2.30 Calculate the force fy applied perpendicularly to the rigid lever OC at B-see Figure 2.61-that generates a displacement yc=0.01m for k1=80Nm,k2=150Nm,k3=40Nm, and k4=30Nm. The lever undergoes small rotations around the axis passing through the pivot O.

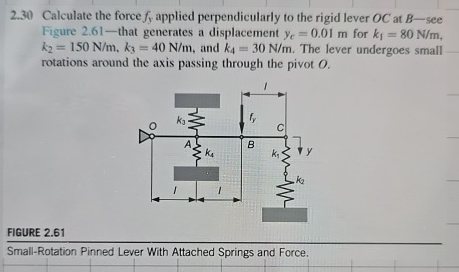

FIGURE 2.61
Small-Rotation Pinned Lever With Attached Springs and Force.
please explain the steps. thanks! 2 . 3 0

Step by Step Solution

There are 3 Steps involved in it
