Question: Please fill out the bottom two empty charts using the correct identity laws Laws Q4 (4 points) 1. In the following Truth table, fill in

Please fill out the bottom two empty charts using the correct identity laws

Please fill out the bottom two empty charts using the correct identity

Laws

laws Laws Q4 (4 points) 1. In the following Truth table, fill

in the SOP and POS Boolean expressions 2. In the tables below,

please provide full SOP and POS functions in appropriate canonical form. 3.

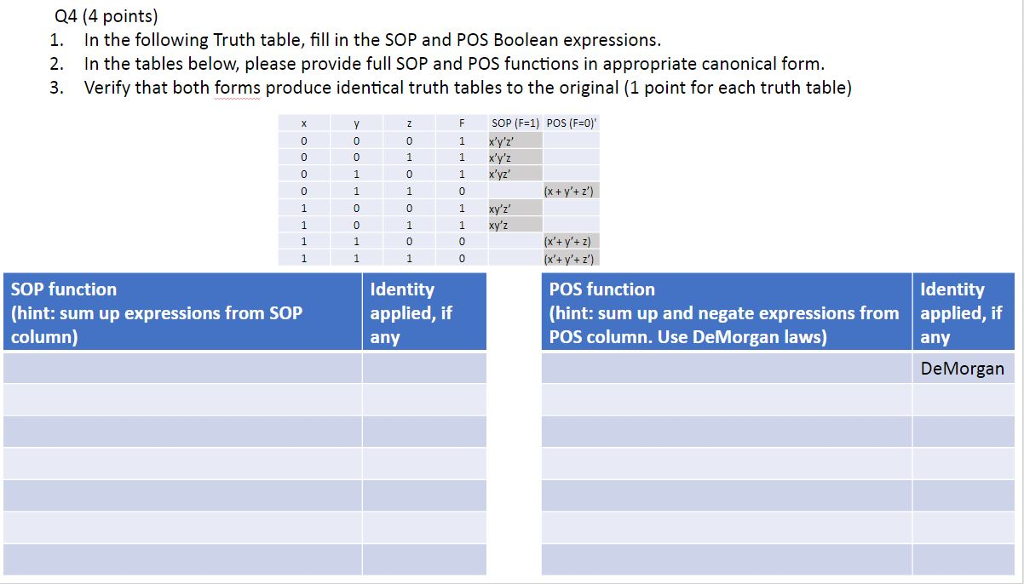

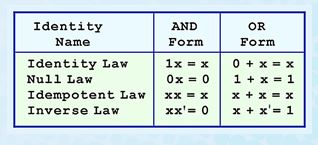

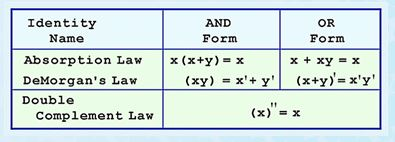

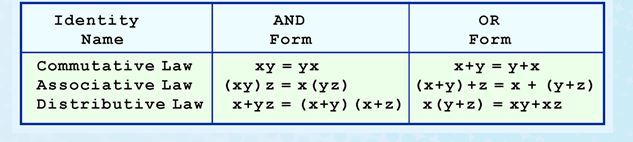

Q4 (4 points) 1. In the following Truth table, fill in the SOP and POS Boolean expressions 2. In the tables below, please provide full SOP and POS functions in appropriate canonical form. 3. Verify that both forms produce identical truth tables to the original (1 point for each truth table) SOP (F-1) POS (F-0) 1 x'y'z 1 x'yz' 1 xy'z' 0 0 1 xy'z SOP function (hint: sum up expressions from SOP column) Identity applied, if any POS function (hint: sum up and negate expressions from POS column. Use DeMorgan laws) Identity applied, if any DeMorgan
