Question: Please find preceding and duration(days) Activity preceding duration(days) A - B C D E F G How can we get this network diagram ?? Thanks

Please find preceding and duration(days) Activity

Please find preceding and duration(days)

Activity preceding duration(days)
A -
B
C
D

E

F

G

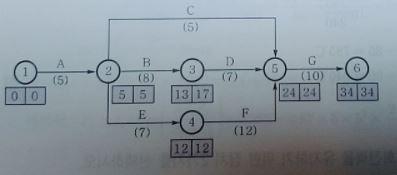

How can we get this network diagram ??

Thanks in advance!

15) 1 (5) 2 2 3 D (7) 5 B (8) 5 6 G (10) 12424 0 0 5 13 17 3434 E (7) F (12) 12 12 SH
