Question: Please give a good explanation about your answer, do not answer it if you do not know it! 10. (12%) Asynchronous sequential circuit. The circuit

Please give a good explanation about your answer, do not answer

Please give a good explanation about your answer, do not answer it if you do not know it!

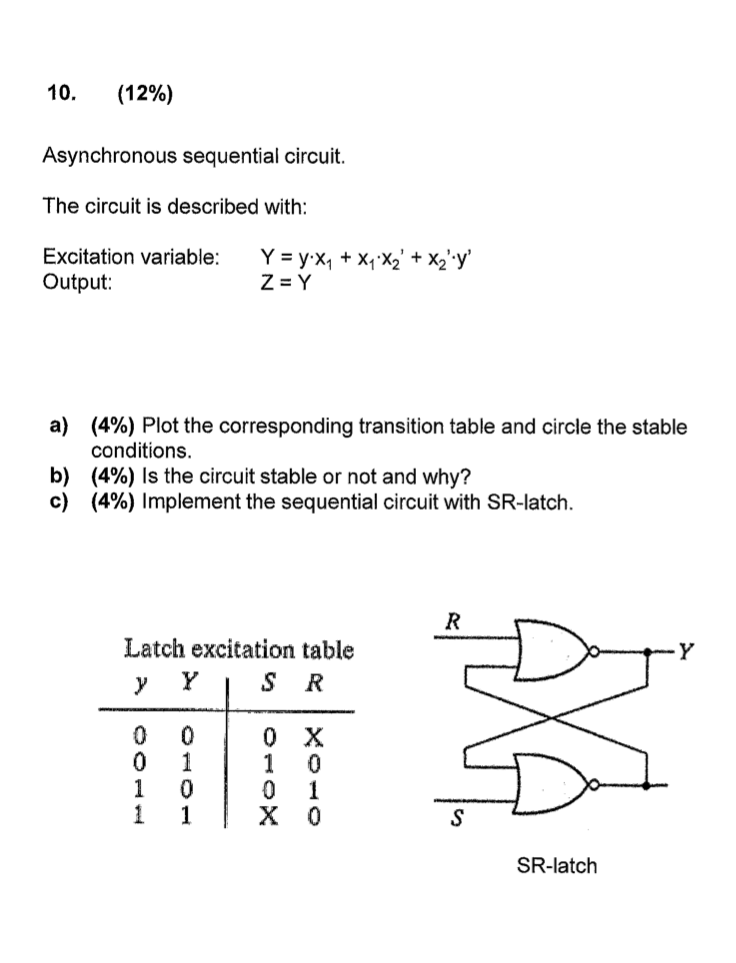

10. (12%) Asynchronous sequential circuit. The circuit is described with: Excitation variable: Y-yx, + x, x2 + xy Output: (4%) Plot the corresponding transition table and circle the stable condition:s (4%) Is the circuit stable or not and why? (4%) Implement the sequential circuit with SR-latch. a) b) c) Latch excitation table 0 00 X 1 1 X 0 SR-latch 10. (12%) Asynchronous sequential circuit. The circuit is described with: Excitation variable: Y-yx, + x, x2 + xy Output: (4%) Plot the corresponding transition table and circle the stable condition:s (4%) Is the circuit stable or not and why? (4%) Implement the sequential circuit with SR-latch. a) b) c) Latch excitation table 0 00 X 1 1 X 0 SR-latch

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
