Question: please help (15 points) Using 4 -bit numbers to save space, multiply 9ten8ten, or 1001two1000two. Use the algorithm outlined in the flowchart in figure 3.4

please help please help (15 points) Using 4 -bit numbers to save space,

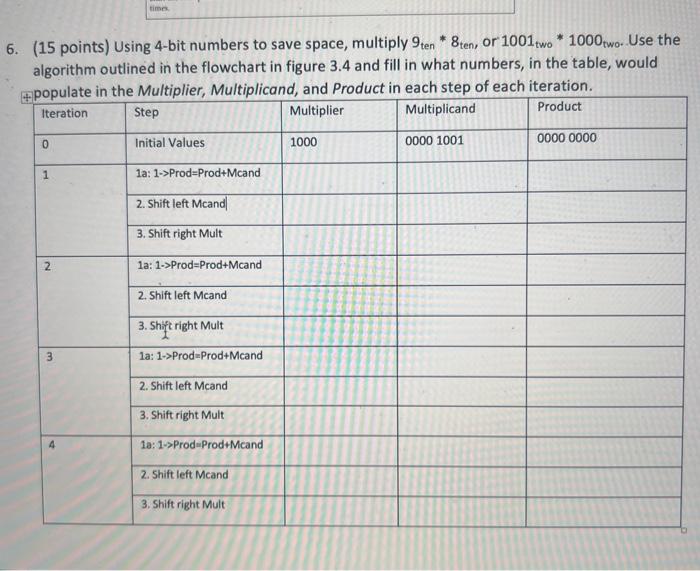

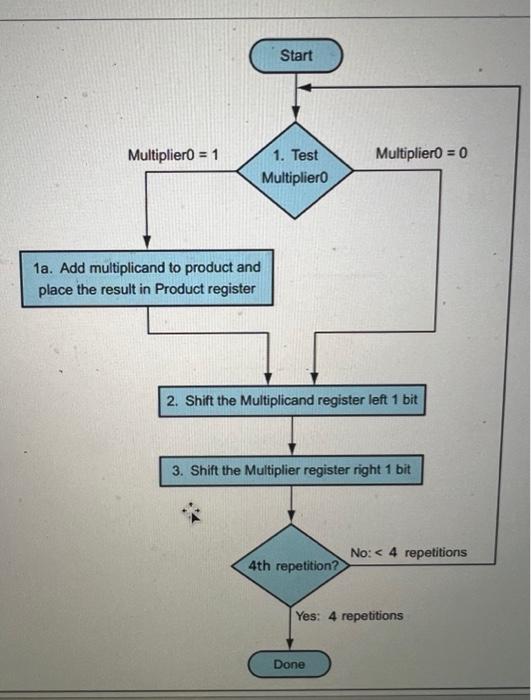

(15 points) Using 4 -bit numbers to save space, multiply 9ten8ten, or 1001two1000two. Use the algorithm outlined in the flowchart in figure 3.4 and fill in what numbers, in the table, would 1a. Add multiplicand to product and place the result in Product register 2. Shift the Multiplicand register left 1 bit 3. Shift the Multiplier register right 1 bit

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

(15 points) Using 4-bit numbers to save space, multiply 9ten8ten or 1001two1000two Use the algorithm outlined in the flowchart in figure 3.4 and fill in what numbers, in the table, would populate in...
