Please help draw a small computer network

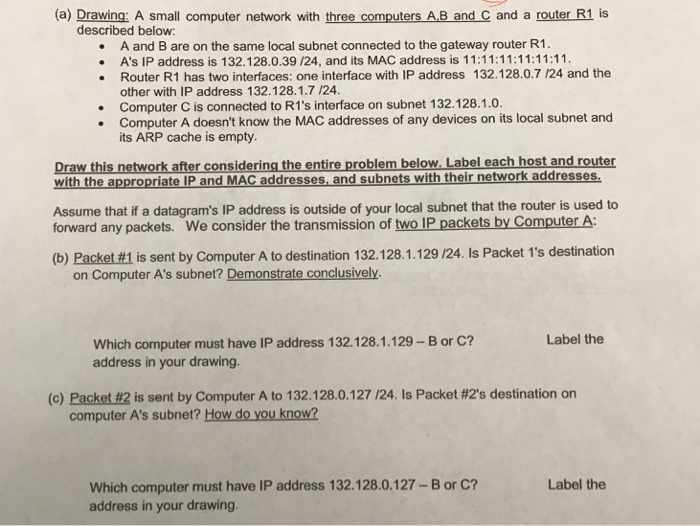

(a) Drawing: A small computer network with three computers A.B and C and a router R1 is described below A and B are on the same local subnet connected to the gateway router R1. A's IP address is 132.128.0.39 /24, and its MAC address is 11:11:11:11:11:11. Router R1 has two interfaces: one interface with IP address 132.128.0.7 124 and the other with IP address 132.128.1.7 /24 Computer C is connected to R1's interface on subnet 132.128.1.0. Computer A doesn't know the MAC addresses of any devices on its local subnet and its ARP cache is empty. Draw this network after considering the entire problem below. Label each host and router with the appropriate IP and MAC addresses, and subnets with their network addresses. Assume that if a datagram's IP address is outside of your local subnet that the router is used to forward any packets. We consider the transmission of two IP packets by Computer A (b) Packet #1 is sent by Computer A to destination 132. 128.1.129 /24. Is Packet 1's destination on Computer A's subnet? Demonstrate conclusively Label the Which computer must have IP address 132.128.1.129-Bor C? address in your drawing. (c) Packet #2 is sent by Computer A to 132.128.0.127/24. Is Packet #2's destination on computer A's subnet? How do you know? Which computer must have IP address 132.128.0.127-B or C? address in your drawing Label the
