Question: Please help me draw in the correct views. This is for a Technical Drawing course or Engineering Graphics. Didnt know what subject to put this

Please help me draw in the correct views. This is for a Technical Drawing course or Engineering Graphics. Didnt know what subject to put this under.

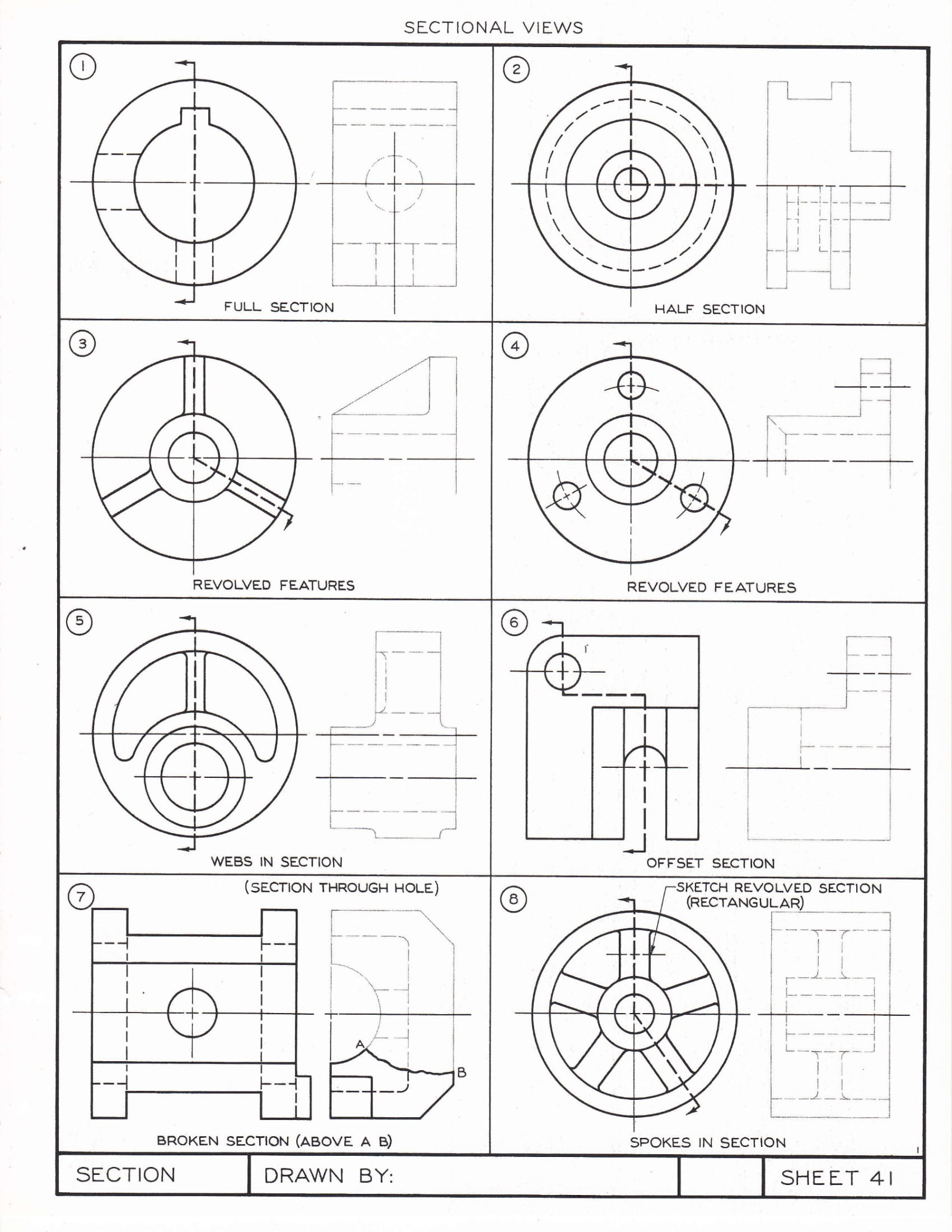

SECTIONAL VIEWS 2 FULL SECTION HALF SECTION 3 4 REVOLVED FEATURES REVOLVED FEATURES 6 WEBS IN SECTION OFFSET SECTION (SECTION THROUGH HOLE) 8 SKETCH REVOLVED SECTION 7 (RECTANGULAR) BROKEN SECTION (ABOVE A B) SPOKES IN SECTION SECTION DRAWN BY: SHEET 41
