Question: Please help me . Please pleaseeeee Read the following narrative regarding plastic basin making process in a manufacturing plant: The raw material silo is filled

Please help me . Please pleaseeeeePlease help me . Please pleaseeeee Read the

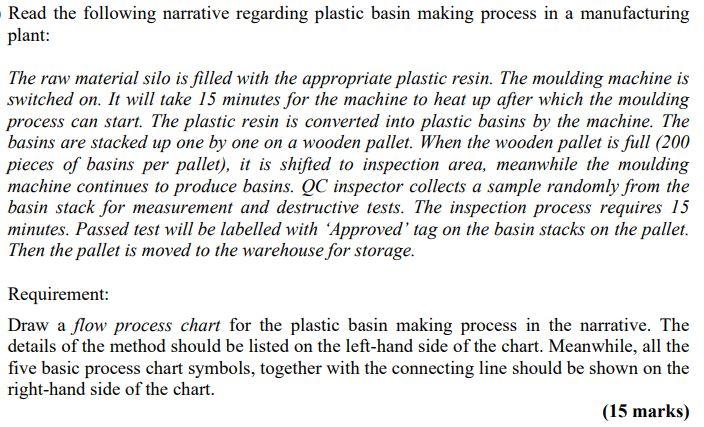

Read the following narrative regarding plastic basin making process in a manufacturing plant: The raw material silo is filled with the appropriate plastic resin. The moulding machine is switched on. It will take 15 minutes for the machine to heat up after which the moulding process can start. The plastic resin is converted into plastic basins by the machine. The basins are stacked up one by one on a wooden pallet. When the wooden pallet is full (200 pieces of basins per pallet), it is shifted to inspection area, meanwhile the moulding machine continues to produce basins. QC inspector collects a sample randomly from the basin stack for measurement and destructive tests. The inspection process requires 15 minutes. Passed test will be labelled with Approved' tag on the basin stacks on the pallet. Then the pallet is moved to the warehouse for storage. Requirement: Draw a flow process chart for the plastic basin making process in the narrative. The details of the method should be listed on the left-hand side of the chart. Meanwhile, all the five basic process chart symbols, together with the connecting line should be shown on the right-hand side of the chart. (15 marks)
