Question: Please help me with physics Question 4 2 pt When the momentary switch is open (button is NOT being pressed), which of the following are

Please help me with physics

Please help me with physics Question 4 2 pt When the momentary

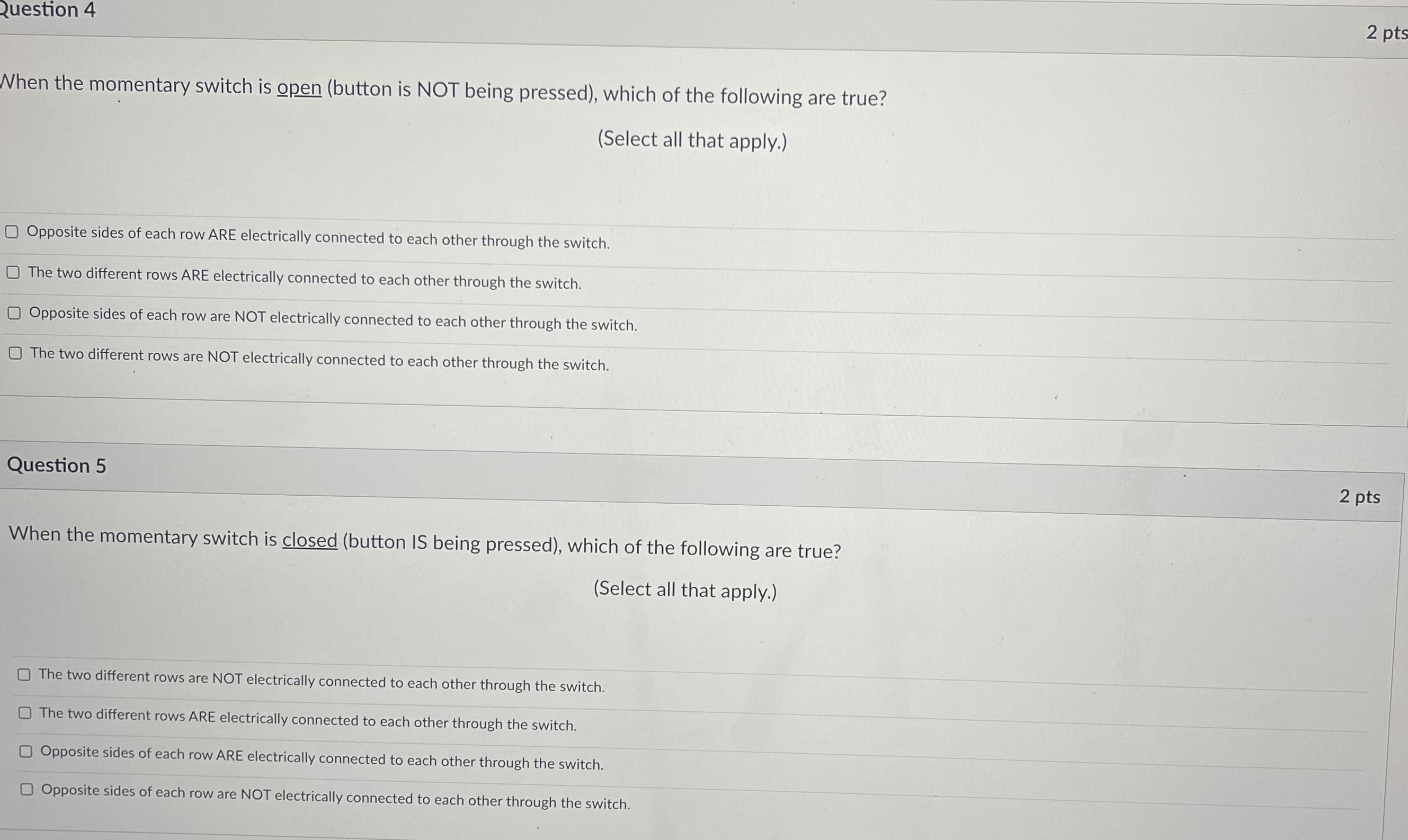

Question 4 2 pt When the momentary switch is open (button is NOT being pressed), which of the following are true? (Select all that apply.) O Opposite sides of each row ARE electrically connected to each other through the switch. O The two different rows ARE electrically connected to each other through the switch. Opposite sides of each row are NOT electrically connected to each other through the switch. O The two different rows are NOT electrically connected to each other through the switch. Question 5 2 pts When the momentary switch is closed (button IS being pressed), which of the following are true? (Select all that apply.) The two different rows are NOT electrically connected to each other through the switch. The two different rows ARE electrically connected to each other through the switch. O Opposite sides of each row ARE electrically connected to each other through the switch. O Opposite sides of each row are NOT electrically connected to each other through the switch
