Question: Please help Name: Meadow SPH3U - Electricity Problem Set due: Thursday, May 18 37 unknown. 1. Complete the following table - include the equation used

Please help

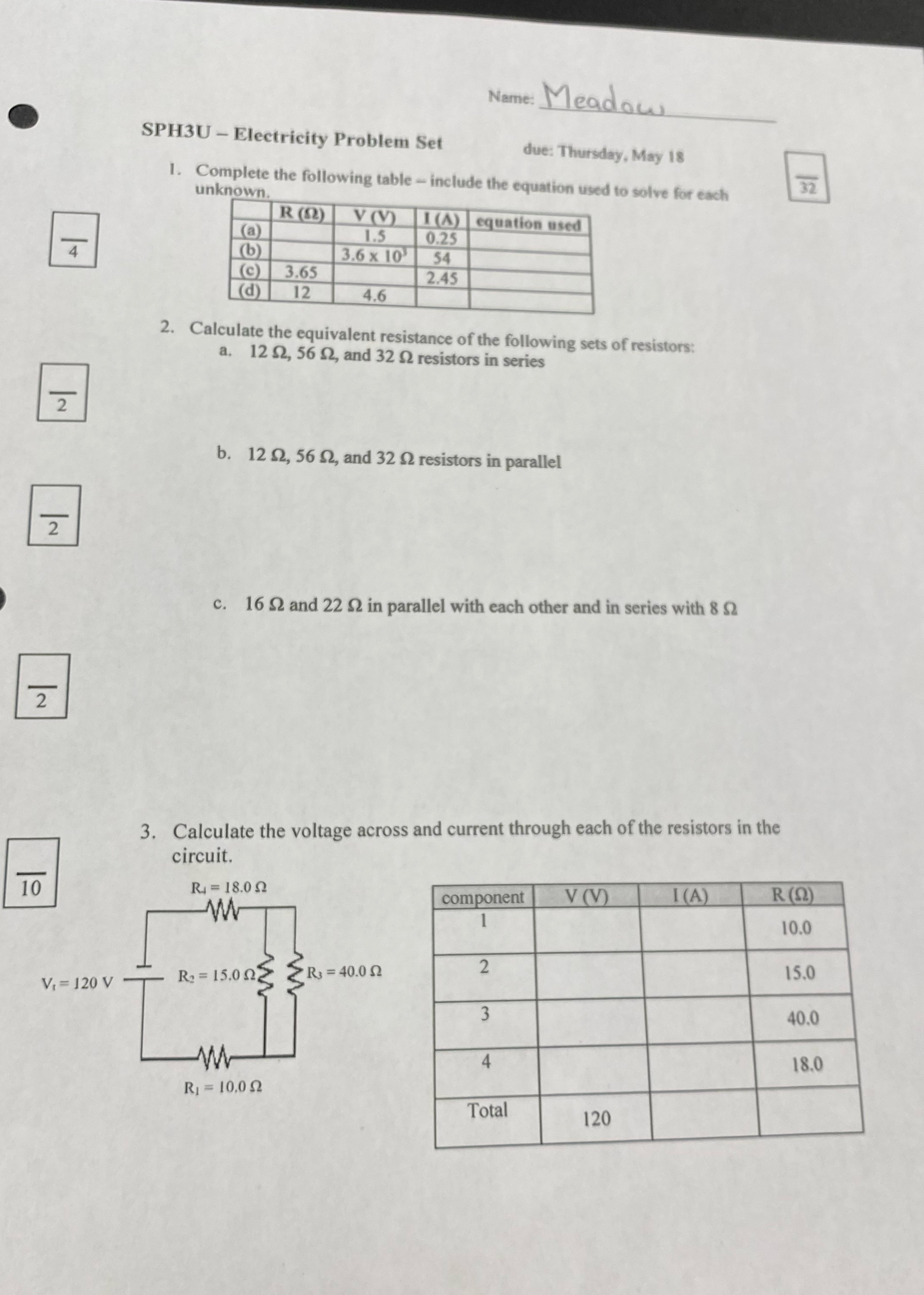

Name: Meadow SPH3U - Electricity Problem Set due: Thursday, May 18 37 unknown. 1. Complete the following table - include the equation used to solve for each R(Q V(V)|I (A) equation used (@ 1.5 0.25 4 (b 3.6 x 10 54 (c 3.65 2.45 (d) 12 4.6 2. Calculate the equivalent resistance of the following sets of resistors: a. 12 02, 56 02, and 32 12 resistors in series 2 b. 12 02, 56 02, and 32 12 resistors in parallel 2 c. 16 02 and 22 $2 in parallel with each other and in series with 8 $2 2 3. Calculate the voltage across and current through each of the resistors in the circuit. 10 R. = 18.0 0 component V (V) I (A) R (1) 10.0 R2 = 15.002 2 R = 40.0 0 2 15.0 V1 = 120 V 3 40.0 4 18.0 R1 = 10.0 0 Total 120

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
