Question: Please help solve the problem related to the complex irrigation! In the composite pipeline ( parallel pipeline ) as shown in Figure H = 8

Please help solve the problem related to the complex irrigation!

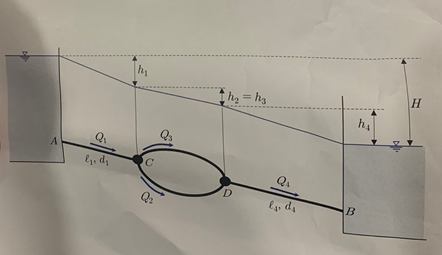

In the composite pipeline (parallel pipeline) as shown in Figure
H=8.7m, l1=3,000m, l2=730m, l3=600m, l4=300m,
d1=0.3m, d2=0.2m, d3=0.25m, d4=0.25m
Find the flow rate and flow rate of each irrigation channel.
(However, only the number of friction losses is considered, and the friction coefficients of the pipe are all 0.02)
