Please help the automaton problem.

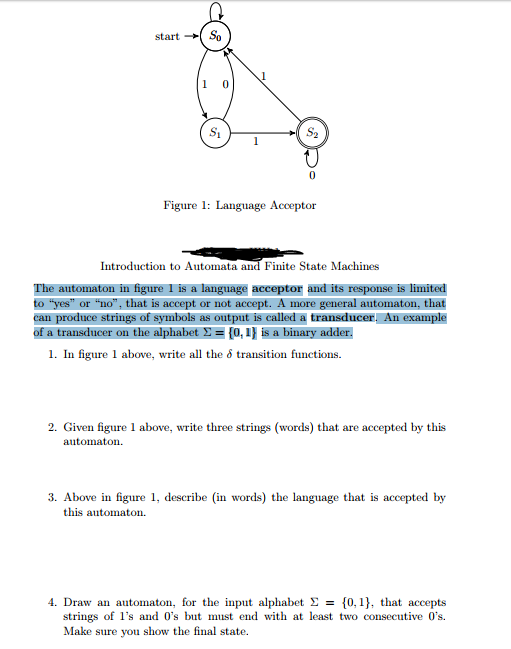

Si Figure 1: Language Acceptor Introduction to Automata and Finite State Machines The automaton in figure 1 is a language acceptor and its response is limited to "yes" or "no", that is accept or not accept. A more general automaton, that can produce strings of symbols as output is called a transducer. An example ofatransducer on the alphabet = {0 is a binary adder I. In figure 1 above, write all the transition functions. 2. Given figure 1 above, write three strings (words) that are accepted by this automaton 3. Above in figure 1, describe (in words) the language that is accepted by this automaton 4. Draw an automaton, for the input alphabet = {0,1}, that accepts strings of 1's and 0's but must end with at least two consecutive 0's. Make sure you show the final state
