Please help using java in Processing. Project $2-$ Random Walk Variant Example Images $$

$2300$ hexagons with and without stroke and terrain coloring, using the same seed value UI Specifications

The UI for this project is not complicated, but there are a fair number of components that will need

implementation. The details for these are described below. The background of the UI is a simple

rectangle with a width of $200.$ Many applications will have multiple panels like this, often with dynamic

properties. $($WINDOW SIZE: $1200$x$800)$

Where the magic happens, the start button. You can change the

background color by using the setColorBackground$()$ function.

A DropdownList object. The following functions will be helpful:

a$.$ addItem$()-$ Adds and item to the list

b$.$ setItemHeight$()-$ set the height of entries in the list

c$.$ setBarHeight $()-$ set the height of the "selected" item on

the top

d$.$ getvalue$()-$ retrieve the $0-$based index of whatever is

selected

A slider for the maximum number of steps, with a range of $100$ to

$50,000.$ The text above it is a Textlabel. To disable the text on a

Slider, you can call getCaptionLabel$().$setVisible$($false$),$ or just pass an

empty string to the setCaptionLabel$()$ function.

A slider to indicate how many steps to take in a single frame, with a

range of $1$ to $1,000$

A Slider indicating the size of a single step. This will be represent the

length of a square's side, or the radius of a hexagon. The range of

this should be $10$ to $30.$

A Slider for an additional modifier to the length of a step from one

position to the next. This is a multiplier with a range of $1\mathrm{.}0$ to $1\mathrm{.}5.$

A Toggle indicating whether or not the walking process should

remain bound to the viewable area or not $($the rest of the window

NOT covered by this UI panel$).$ To access the on$/$off value of a Toggle

object, simply catch the return of the getState$()$ function.

Another Toggle representing if the drawing process should color the

steps to give a rough approximation of terrain elevation, or instead

use a fixed color for each space.

A toggle to indicate whether shapes should be drawn with a stroke

outline or not.

A toggle to indicate whether a specific value should be used to seed

the random number generator or not.

A Textfield to let you specify a seed value for the random number generator. You can seed the

generator by calling the function randomseed $().$ Some helpful functions for this control:

a$.$ setInputFilter$()-$ Pass ControlP$5.$INTEGER to this function to limit input to integers

b$.$ getText$()-$ This retrieves the data stored in this control, as a string. In order to use this as a

number, you will have to convert it$.($Java has Integer. parseInt$()$ to help with this.$)$

NOTE: If you are using a high resolution display, the function pixel Density $(2)$ can be called after size$()$

to increase the pixel count of your window. This will make the controls a bit larger without having to

manually change their sizes $($and the text of the labels$).$ Class Structure

You should create at least $3$ classes for this project:

An abstract base class with the core functions in a random walk algorithm

A class to control the square walk

A class to handle the hexagonal walk

Why set up classes like this? So you can write like this:

RandomWalkBaseClass someobject $=$ null;

if $($optionA$)$

someobject $=$ new squareClass$()$;

else if $($optionB$)$

someobject $=$ new HexagonClass$()$;

someObject.DoSomeWalkstuff$()$; $//$ Three cheers for polymorphism!

Class Features

On a basic level, your classes should do two things:

Update$()-$ Generate a random number, figure out where to move, and move to that location

Draw$()-$ Draw the specific shape according to the relevant properties: location, size, color, with or

without a stroke, etc

Based on the UI controls and program layout, your base class will need to store information regarding

the following:

The maximum number of steps

The number of steps already taken

The distance of each step

The scale for each step, to add borders$/$padding around each shape

Whether or not to use color

Whether or not to use a stroke when drawing a shape

The boundaries of the viewable area. Normally it would be $0->$ width$-1$ and $0->$ height$-1,$ but

you will need to take the side panel into account, as you don't want to draw over $($or under$)$ the

UI$.$Color Details

The program approximates the idea of building up elevation depending on how many times a particular

location is "visited." How

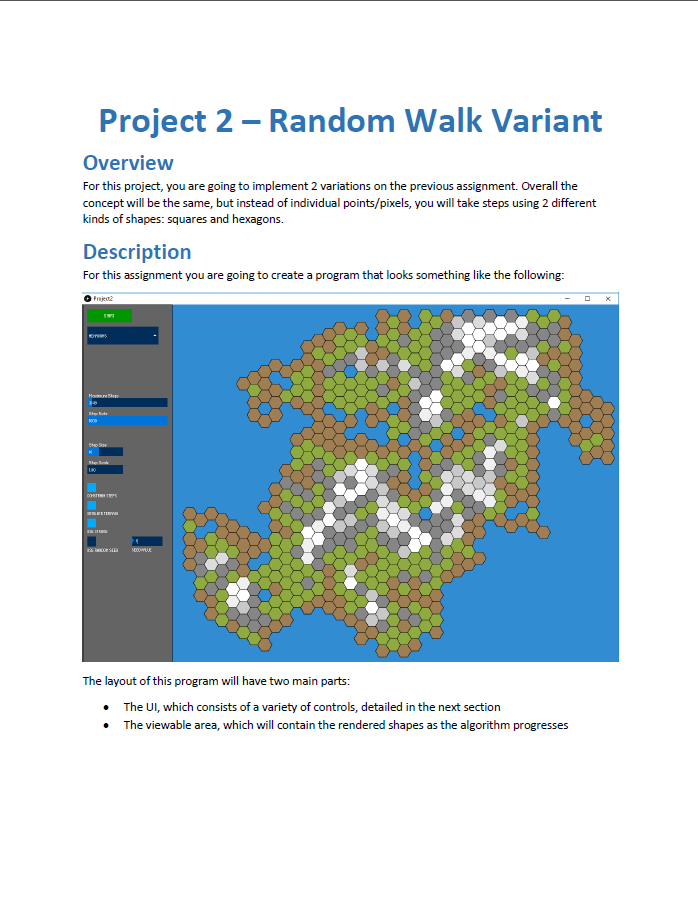

Overview

For this project, you are going to implement $2$ variations on the previous assignment. Overall the concept will be the same, but instead of individual points$/$pixels$,$ you will take steps using $2$ different kinds of shapes: squares and hexagons.

Description

For this assignment you are going to create a program that looks something like the
