Question: Please help with A,B,C 1 3. (16 Points) In Figure 1, C1= 6HF, C5 = 5HF, C2 = 15HF, C3 = C4 = 30UF, and

Please help with A,B,C 1 3. (16 Points) In Figure 1,

Please help with A,B,C

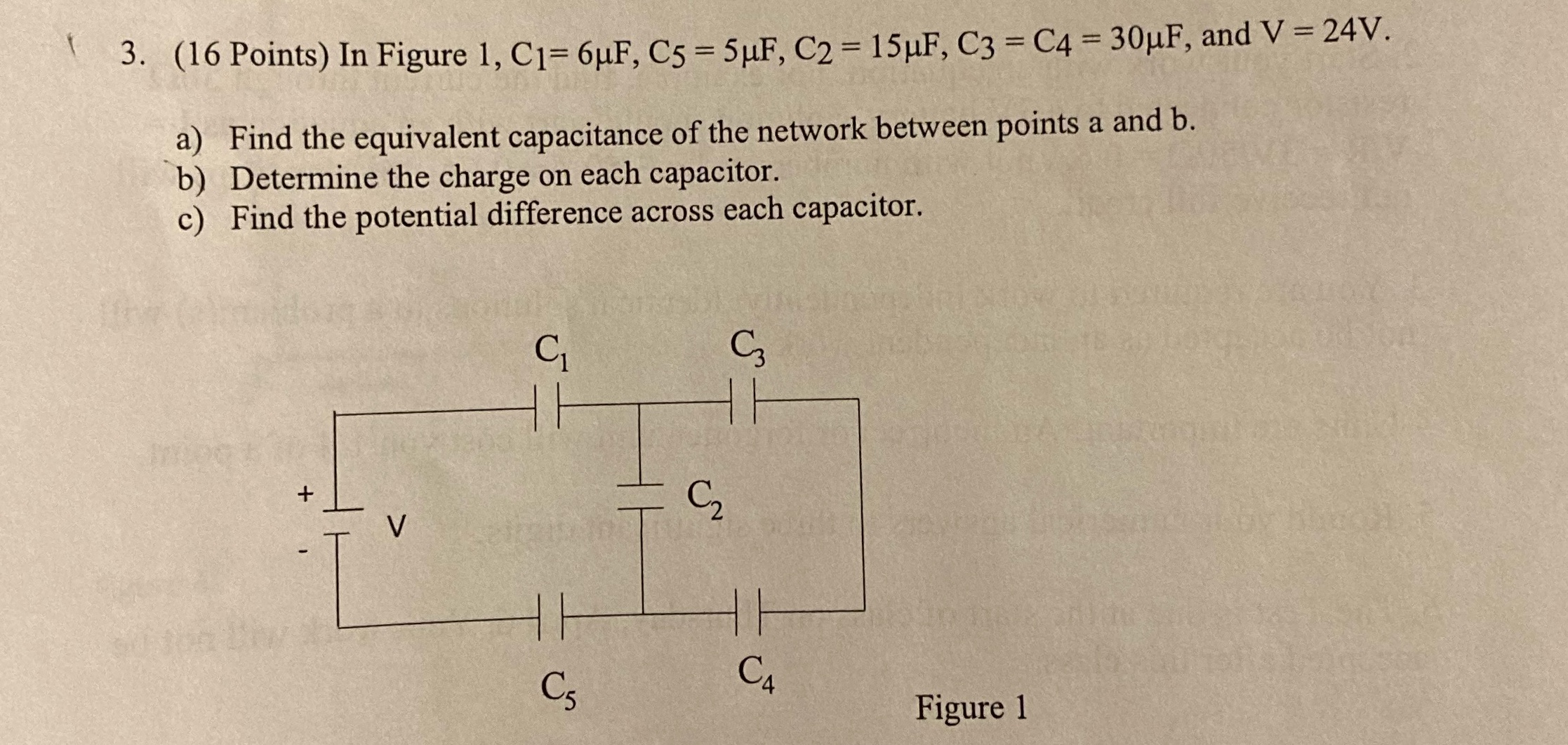

1 3. (16 Points) In Figure 1, C1= 6HF, C5 = 5HF, C2 = 15HF, C3 = C4 = 30UF, and V = 24V. a) Find the equivalent capacitance of the network between points a and b. b ) Determine the charge on each capacitor. c) Find the potential difference across each capacitor. C C3 + V C2 C5 CA Figure 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

3. (16 Points) In Figure 1, C1= 6HF, C5 = 5HF, C2 = 15HF, C3 = C4 = 30uF, and V = 24V. a) Find the equivalent capacitance of the network between points a and b. b) Determine the charge on each...
