Please make sure to include the graph and the diagram along with the answer.

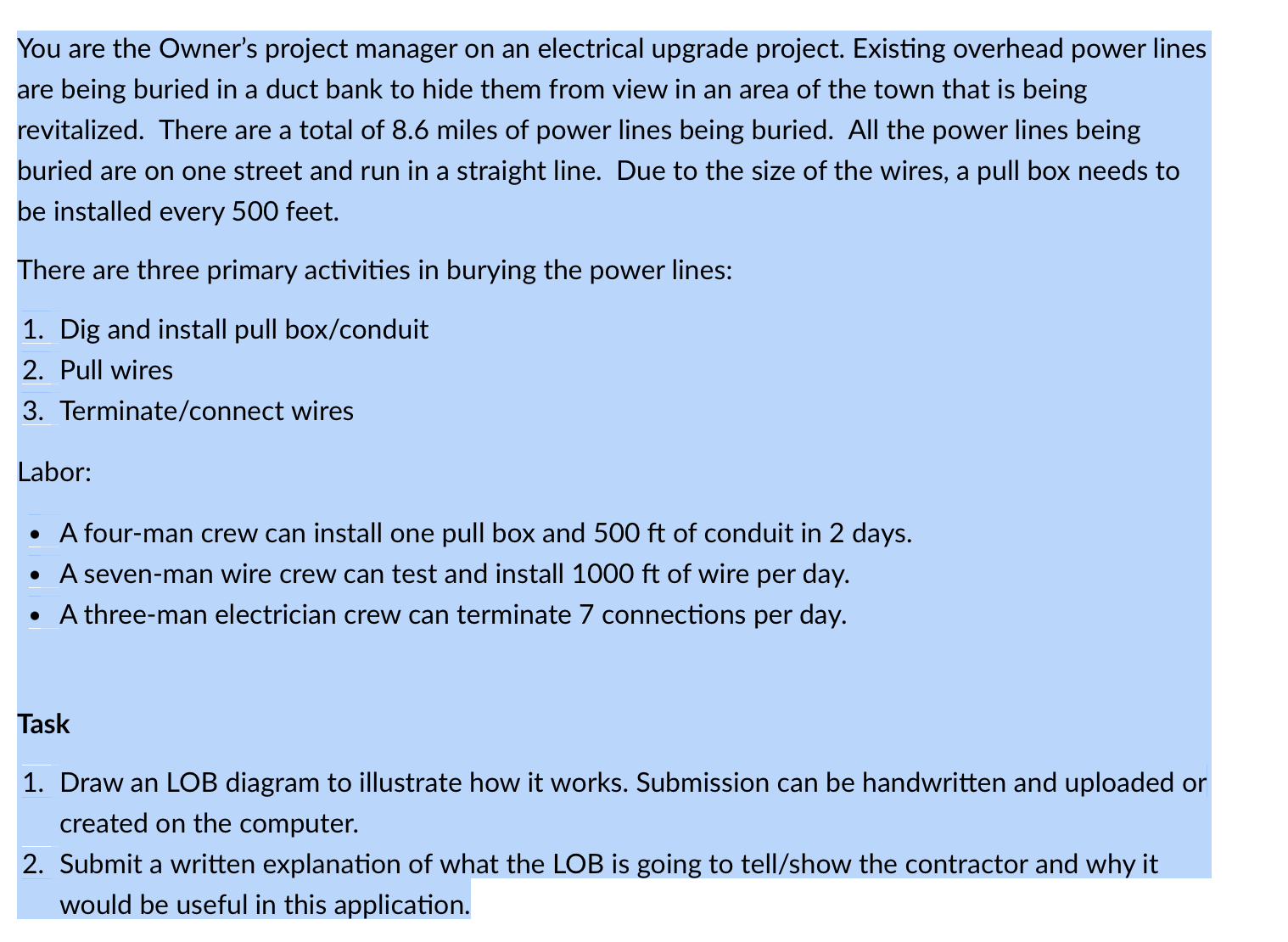

You are the Owner's project manager on an electrical upgrade project. Existing overhead power lines are being buried in a duct bank to hide them from view in an area of the town that is being revitalized. There are a total of $8\mathrm{.}6$ miles of power lines being buried. All the power lines being buried are on one street and run in a straight line. Due to the size of the wires, a pull box needs to be installed every $500$ feet.

There are three primary activities in burying the power lines:

$1.$ Dig and install pull box$/$conduit

$2.$ Pull wires

$3.$ Terminate$/$connect wires

Labor:

$-$ A four$-$man crew can install one pull box and $500$ ft of conduit in $2$ days.

$-$ A seven$-$man wire crew can test and install $1000$ ft of wire per day.

$-$ A three$-$man electrician crew can terminate $7$ connections per day.

Task

$1.$ Draw an LOB diagram to illustrate how it works. Submission can be handwritten and uploaded or created on the computer.

$2.$ Submit a written explanation of what the LOB is going to tell$/$show the contractor and why it would be useful in this application.
