please make sure , you go through the second page as thats the example i'm providing you to make sure you do it correctly as all the answers provided for this question is wrong. please do it according to the example provided.

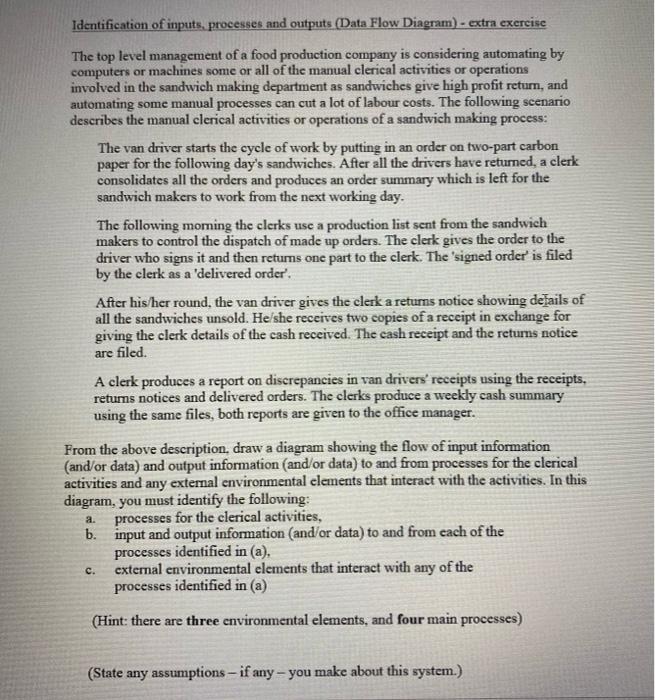

example and answer

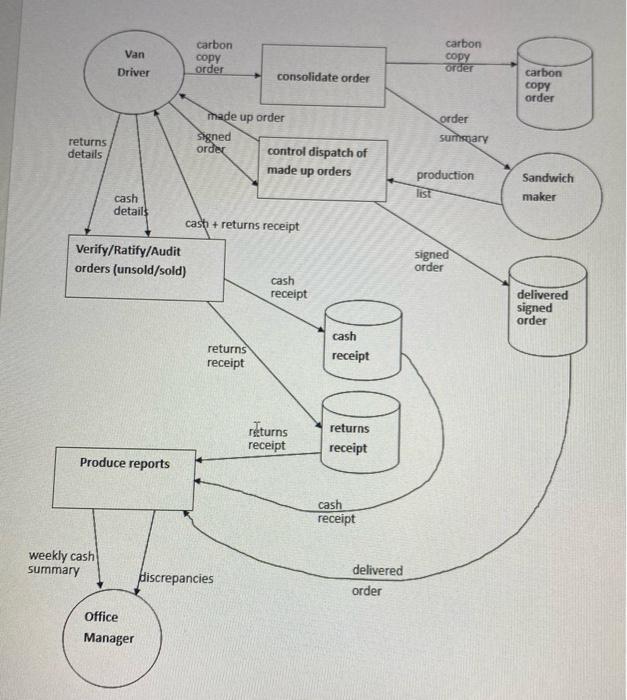

example and answer

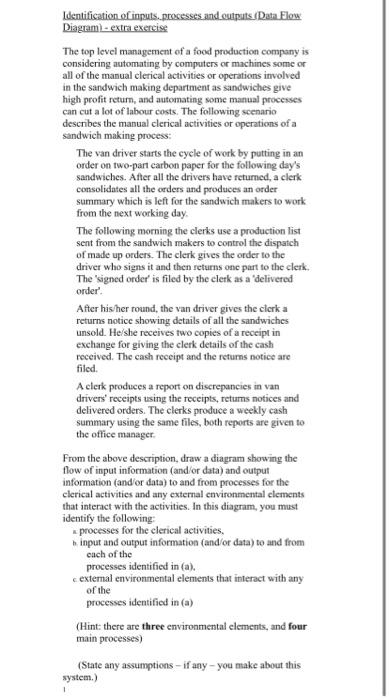

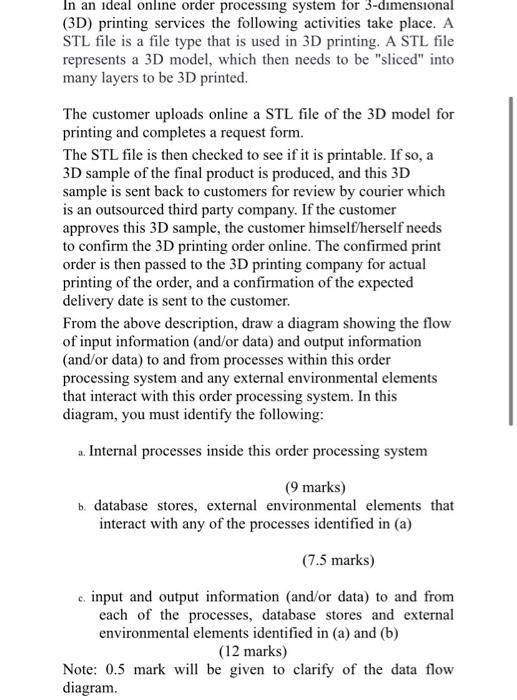

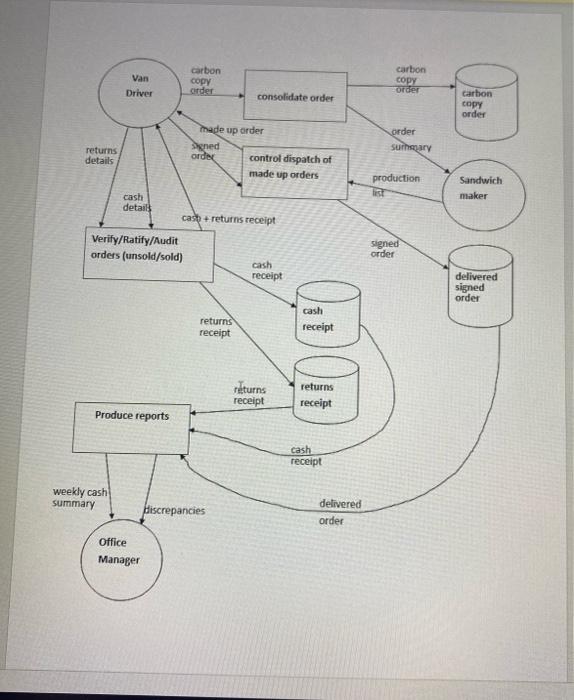

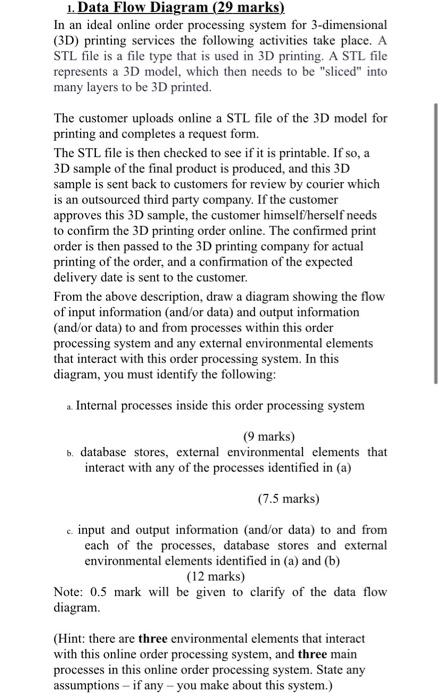

1. Data Flow Diagram (29 marks) In an ideal online order processing system for 3-dimensional (3D) printing services the following activities take place. A STL file is a file type that is used in 3D printing. A STL file represents a 3D model, which then needs to be "sliced" into many layers to be 3D printed. The customer uploads online a STL file of the 3D model for printing and completes a request form. The STL file is then checked to see if it is printable. If so, a 3D sample of the final product is produced, and this 3D sample is sent back to customers for review by courier which is an outsourced third party company. If the customer approves this 3D sample, the customer himself/herself needs to confirm the 3D printing order online. The confirmed print order is then passed to the 3D printing company for actual printing of the order, and a confirmation of the expected delivery date is sent to the customer. From the above description, draw a diagram showing the flow of input information (and/or data) and output information (and/or data) to and from processes within this order processing system and any external environmental elements that interact with this order processing system. In this diagram, you must identify the following: 1.Internal processes inside this order processing system (9 marks) b. database stores, external environmental elements that interact with any of the processes identified in (a) (7.5 marks) e input and output information and/or data) to and from each of the processes, database stores and external environmental elements identified in (a) and (b) (12 marks) Note: 0.5 mark will be given to clarify of the data flow diagram (Hint: there are three environmental elements that interact with this online order processing system, and three main processes in this online order processing system. State any assumptions - if any - you make about this system.) - Identification of inputs, processes and outputs (Data Flow Diagram) - extra exercise The top level management of a food production company is considering automating by computers or machines some or all of the manual clerical activities or operations involved in the sandwich making department as sandwiches give high profit return, and automating some manual processes can cut a lot of labour costs. The following scenario describes the manual clerical activities or operations of a sandwich making process: The van driver starts the cycle of work by putting in an order on two-part carbon paper for the following day's sandwiches. After all the drivers have returned, a clerk consolidates all the orders and produces an order summary which is left for the sandwich makers to work from the next working day. The following morning the clerks use a production list sent from the sandwich makers to control the dispatch of made up orders. The clerk gives the order to the driver who signs it and then retums one part to the clerk. The 'signed order' is filed by the clerk as a 'delivered order'. After his/her round, the van driver gives the clerk a returns notice showing details of all the sandwiches unsold. He/she receives two copies of a receipt in exchange for giving the clerk details of the cash received. The cash receipt and the returns notice are filed A clerk produces a report on discrepancies in van drivers' receipts using the receipts, retums notices and delivered orders. The clerks produce a weekly cash summary using the same files, both reports are given to the office manager. From the above description, draw a diagram showing the flow of input information (and/or data) and output information (and/or data) to and from processes for the clerical activities and any external environmental elements that interact with the activities. In this diagram, you must identify the following: processes for the clerical activities, b. input and output information and/or data) to and from each of the processes identified in (a). external environmental elements that interact with any of the processes identified in (a) a. c. (Hint: there are three environmental elements, and four main processes) (State any assumptions--if any - you make about this system.) Van Driver carbon copy order carbon copy order consolidate order carbon copy order made up order Signed order control dispatch of made up orders Order Sursary returns details production Sandwich maker cash details cash returns receipt Verify/Ratity/Audit orders (unsold/sold) signed order cash receipt delivered signed order returns receipt cash receipt returns receipt returns receipt Produce reports cash receipt weekly cash summary discrepancies delivered order Office Manager In an ideal online order processing system for 3-dimensional (3D) printing services the following activities take place. A STL file is a file type that is used in 3D printing. A STL file represents a 3D model, which then needs to be "sliced" into many layers to be 3D printed. The customer uploads online a STL file of the 3D model for printing and completes a request form. The STL file is then checked to see if it is printable. If so, a 3D sample of the final product is produced, and this 3D sample is sent back to customers for review by courier which is an outsourced third party company. If the customer approves this 3D sample, the customer himself/herself needs to confirm the 3D printing order online. The confirmed print order is then passed to the 3D printing company for actual printing of the order, and a confirmation of the expected delivery date is sent to the customer, From the above description, draw a diagram showing the flow of input information (and/or data) and output information (and/or data) to and from processes within this order processing system and any external environmental elements that interact with this order processing system. In this diagram, you must identify the following: a. Internal processes inside this order processing system (9 marks) b. database stores, external environmental elements that interact with any of the processes identified in (a) (7.5 marks) c. input and output information (and/or data) to and from each of the processes, database stores and external environmental elements identified in (a) and (b) (12 marks) Note: 0.5 mark will be given to clarify of the data flow diagram. Identification of inputs.processes and outputs Data Flow Diagram) - extra exercise The top level management of a food production company is considering automating by computers or machines some or all of the manual clerical activities or operations involved in the sandwich making department as sandwiches give high profit return, and automating some manual processes can cut a lot of labour costs. The following scenario describes the manual clerical activities or operations of a sandwich making process: The van driver starts the cycle of work by putting in an order on two-part carbon paper for the following day's sandwiches. After all the drivers have returned, a clerk consolidates all the orders and produces an order summary which is left for the sandwich makers to work from the next working day The following morning the clerks use a production list sent from the sandwich makers to control the dispatch of made up orders. The clerk gives the order to the driver who signs it and then returns one part to the clerk. The signed order' is filed by the clerk as a delivered order After his/her round, the van driver gives the clerka returns notice showing details of all the sandwiches unsold. He/she receives two copies of a receipt in exchange for giving the clerk details of the cash received. The cash receipt and the returns notice arc filed A clerk produces a report on discrepancies in van drivers' receipts using the receipts, returns notices and delivered orders. The clerks produce a weekly cash summary using the same files, both reports are given to the office manager From the above description, draw a diagram showing the flow of input information (and/or data) and output information and/or data) to and from processes for the clerical activities and any external environmental elements that interact with the activities. In this diagram, you must identify the following: processes for the clerical activities, hinput and output information (and/or data) to and from cach of the processes identified in (a) external environmental elements that interact with any of the processes identified in (a) (Hint: there are three environmental elements, and four main processes) (State any assumptions - if any - you make about this system.) Van Driver carbon copy order carbon copy Order consolidate order carbon Copy order order Thade up order signed order control dispatch of orders returns details surnsgary made up production list Sandwich maker cash details cash + returns receipt Verify/Ratify/Audit orders (unsold/sold) signed order cash receipt delivered signed order returns receipt cash receipt returns receipt returns receipt Produce reports cash receipt weekly cash summary discrepancies delivered order Office Manager
