PLEASE ONLY SOLVE IF YOU KNOW THE SOLUTION. I'LL DISLIKE AND COMPLAIN TO CHEGG CUSTOMER SERVICE IF COPIED FROM ELSEWHERE OR WRONG. THANKS!

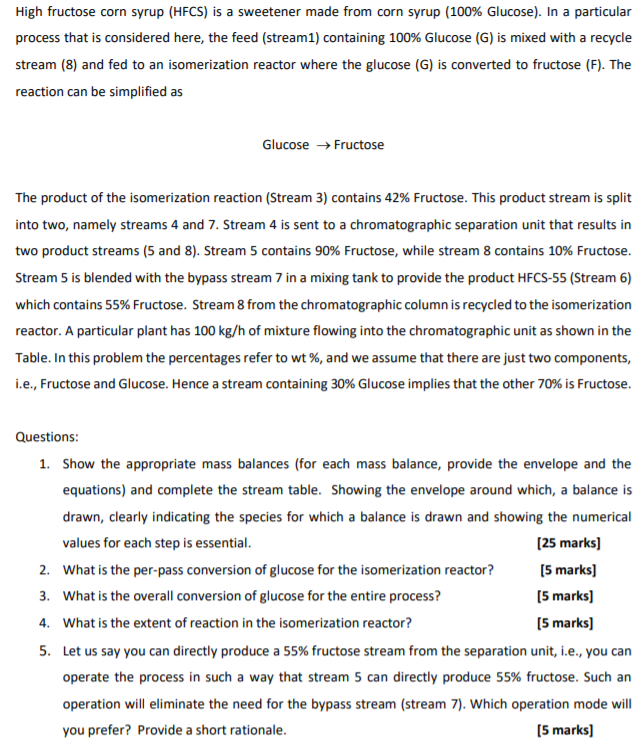

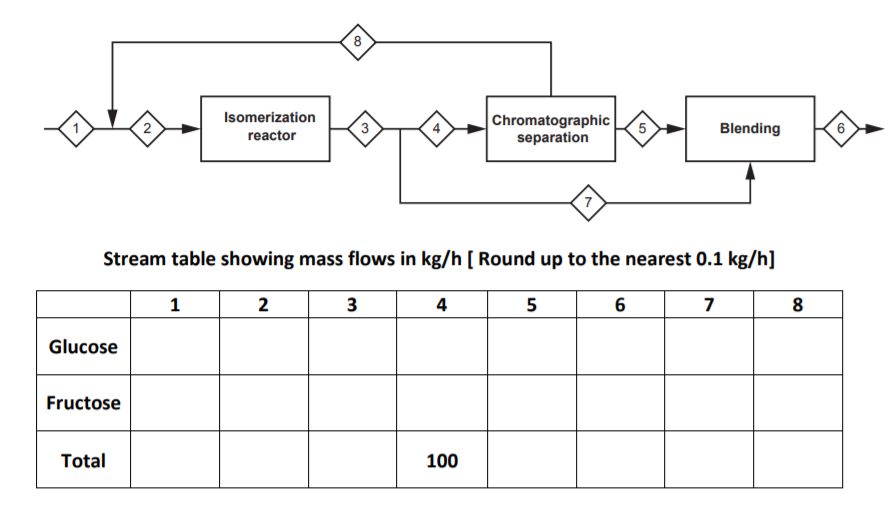

a High fructose corn syrup (HFCS) is a sweetener made from corn syrup (100% Glucose). In a particular process that is considered here, the feed (stream1) containing 100% Glucose (G) is mixed with a recycle stream (8) and fed to an isomerization reactor where the glucose (G) is converted to fructose (F). The reaction can be simplified as Glucose + Fructose The product of the isomerization reaction (Stream 3) contains 42% Fructose. This product stream is split into two, namely streams 4 and 7. Stream 4 is sent to a chromatographic separation unit that results in two product streams (5 and 8). Stream 5 contains 90% Fructose, while stream 8 contains 10% Fructose. Stream 5 is blended with the bypass stream 7 in a mixing tank to provide the product HFCS-55 (Stream 6) which contains 55% Fructose. Stream 8 from the chromatographic column is recycled to the isomerization reactor. A particular plant has 100 kg/h of mixture flowing into the chromatographic unit as shown in the Table. In this problem the percentages refer to wt%, and we assume that there are just two components, i.e., Fructose and Glucose. Hence a stream containing 30% Glucose implies that the other 70% is Fructose. Questions: 1. Show the appropriate mass balances (for each mass balance, provide the envelope and the equations) and complete the stream table. Showing the envelope around which, a balance is drawn, clearly indicating the species for which a balance is drawn and showing the numerical values for each step is essential. [25 marks] 2. What is the per-pass conversion of glucose for the isomerization reactor? [5 marks] 3. What is the overall conversion of glucose for the entire process? [5 marks) 4. What is the extent of reaction in the isomerization reactor? (5 marks) 5. Let us say you can directly produce a 55% fructose stream from the separation unit, i.e., you can operate the process in such a way that stream 5 can directly produce 55% fructose. Such an operation will eliminate the need for the bypass stream (stream 7). Which operation mode will you prefer? Provide a short rationale. [5 marks) 8 2 Isomerization reactor 3 4 Chromatographic separation 5 Blending 6 7 Stream table showing mass flows in kg/h ( Round up to the nearest 0.1 kg/h] 1 2 3 4 5 6 7 8 8 Glucose Fructose Total 100
