Please provide the full steps

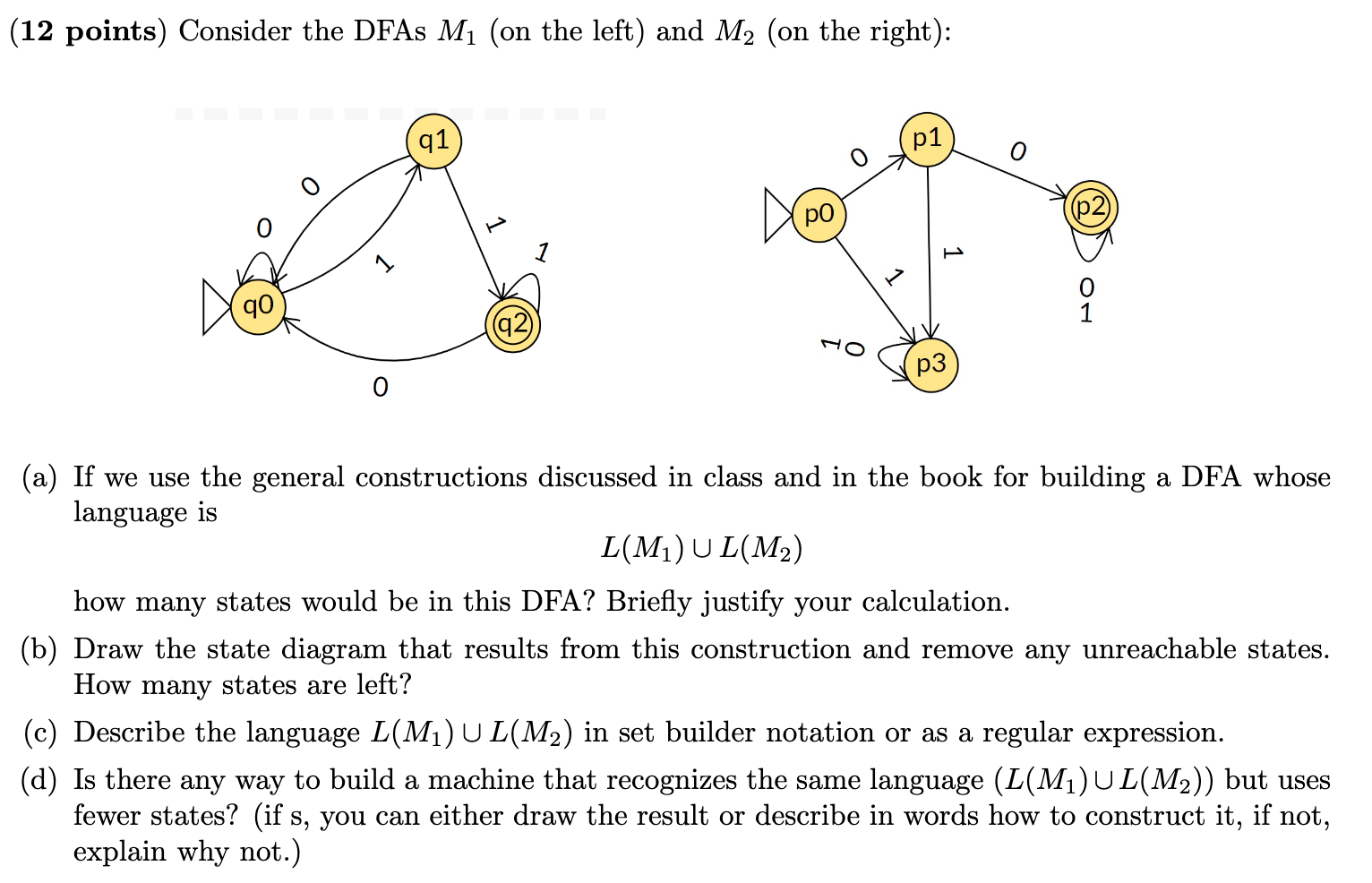

(12 points) Consider the DFAs M1 (on the left) and M2 (on the right): (a) If we use the general constructions discussed in class and in the book for building a DFA whose language is L(M1)L(M2) how many states would be in this DFA? Briefly justify your calculation. (b) Draw the state diagram that results from this construction and remove any unreachable states. How many states are left? (c) Describe the language L(M1)L(M2) in set builder notation or as a regular expression. (d) Is there any way to build a machine that recognizes the same language (L(M1)L(M2)) but uses fewer states? (if s, you can either draw the result or describe in words how to construct it, if not, explain why not.)
