Please respond according to the question asked. I will vote for you if your work is excellent. Please perform the task as instructed.

Note:

My number matrix is 211061210

So in this M = 0

R = 0+1

R = 1

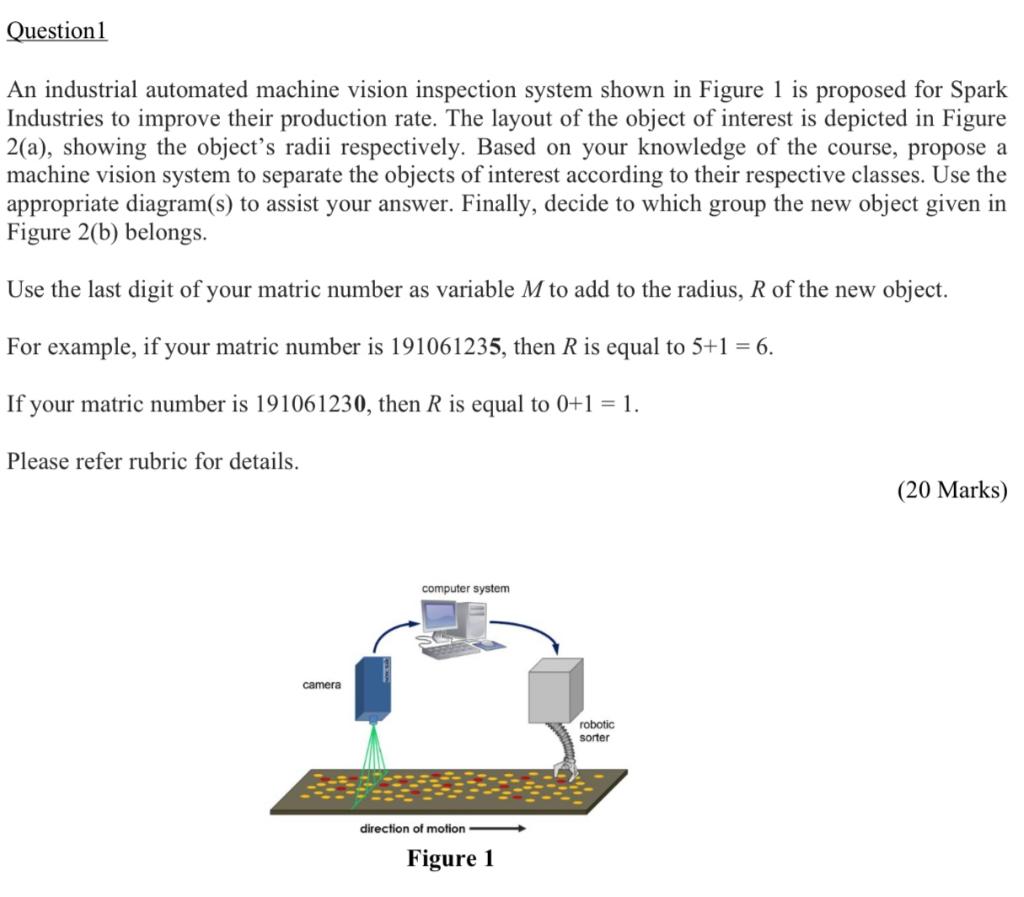

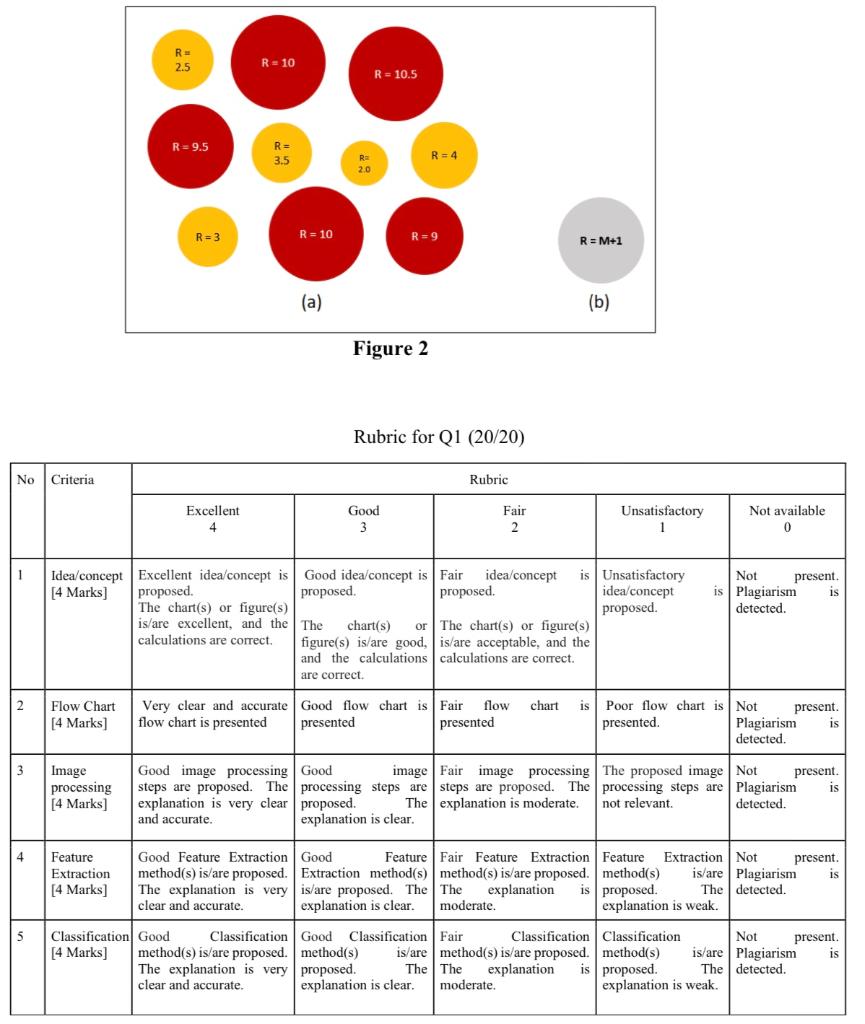

An industrial automated machine vision inspection system shown in Figure 1 is proposed for Spark Industries to improve their production rate. The layout of the object of interest is depicted in Figure 2(a), showing the object's radii respectively. Based on your knowledge of the course, propose a machine vision system to separate the objects of interest according to their respective classes. Use the appropriate diagram(s) to assist your answer. Finally, decide to which group the new object given in Figure 2(b) belongs. Use the last digit of your matric number as variable M to add to the radius, R of the new object. For example, if your matric number is 191061235 , then R is equal to 5+1=6. If your matric number is 191061230 , then R is equal to 0+1=1. Please refer rubric for details. (20 Marks) Rubric for Q1 (20/20)
