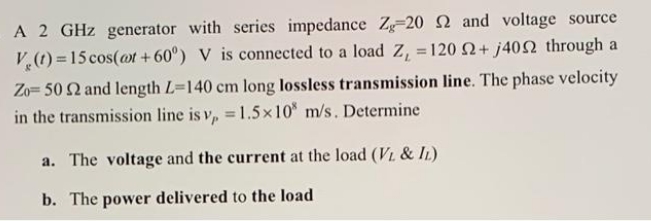

A 2 GHz generator with series impedance Z-20 S and voltage source V. (1) =15cos(of +60") V is connected to a load Z, =120 0+ /40$2 through a Zo= 50 $2 and length L=140 cm long lossless transmission line. The phase velocity in the transmission line is v. = 1.5x10 m/s. Determine a. The voltage and the current at the load (VL & IL) b. The power delivered to the load
